High Lifter Can-Am Defender XMR Lift Kit, 9″ APEXX

High Lifter 9″ APEXX Big Lift Kit For Can Am Defender XMR Models

Get You Some Ground Clearance With This Heavy Duty Big APEXX Can Am Defender XMR Lift Kit, 9″ Monster To Clear All The Grounds.

The High Lifter 8″ Big Lift is now even beefier!

This WILL ONLY FIT XMR, For Others Verision See Here – Defender Big Lift Kit

• Please Check Fitment Tab To Verify Your Machine

This all-inclusive kit features heavy-duty APEXX control arms in addition to giving you the added ground clearance you need to run up to 37″ tires. Your machine will be one of the baddest on the trails.

Take your machine to the next level with High Lifter’s APEXX 9″ Big Lift Kit. Increase your ground clearance and make room for larger tires to dig deep and ride hard in most terrains.

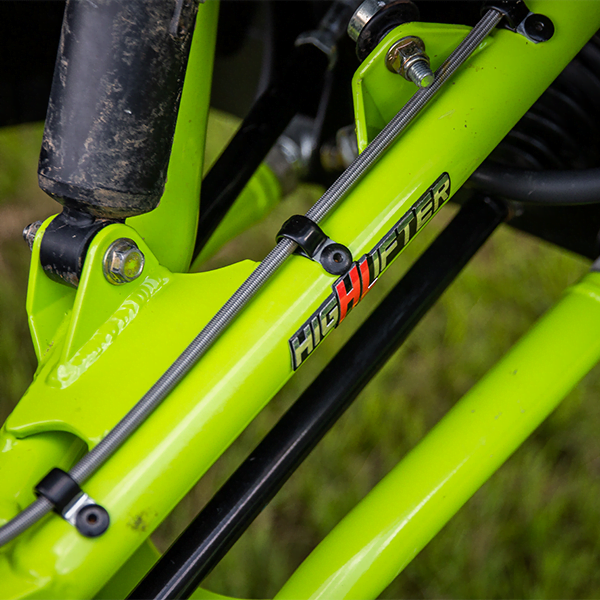

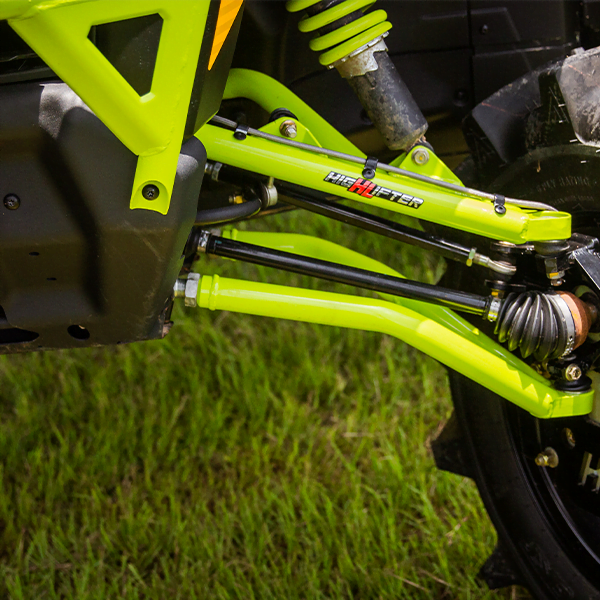

This kit also features the strongest front and rear control arms on the market. With 1.5” DOM steel tubing, these arms add power, durability, and support to your machine so it can withstand the abuse of a good ride.

The lower arms feature an adjustability component in the bushing collars to eliminate premature wearing that can come from the addition of lift kits, portals, or larger tires.

When the kit is set to the factory position, you have 3/8” of adjustability camber in and out. Heat treated and plated adjustable bushing collars allow you to be confident in the strength you’re adding to your ride.

This kit comes packaged and preadjusted to the factory position, and factory bushings and caps should be used for installation.

Each big lift kit comes with four DHT XL axles that are custom tuned for use with the APEXX 9″ High Lifter Big Lift Kit.

Tire Fitment:
Up to 37″ High -Our stated tire fitment guide is a general fitment and is in no way guaranteed. Tires and lifts vary by manufacture and tire fitment can be affected by other modifications. Always verify your brand of tires, lift, and other modifications prior to making a buying decision.

Includes:

• Heavy duty laser cut rear upper lift/shock relocation brackets
• Eight custom heavy-duty APEXX Max Clearance Control Arms crafted from 1 1/2″x.120 wall DOM tubing, heavy duty support gussets, and shock mounts
• Adjustable heat-treated collars for camber adjustability with a 1” thread
• Four Outlaw DHT XL axles
• Custom tie rods with heim-style rod ends
• Custom brake line kit
• All required hardware
• Detailed instructions with step-by-step photos

Included Axles

Each big lift kit comes with four Outlaw DHT XL axles that are custom tuned for use with the APEXX 6” High Lifter Big Lift Kit.

Outlaw DHT XL Axle:

• Dual heat treatments on the housings to improve toughness against shock loads without compromising bearing surfaces and long-term life
• Oversized CV joint housings to increase strength
• Sliding bars on both ends for increased angle capability
• Housings and bars made from 4340 Chromoly steel
• Puncture-resistant boots which are durable in high and low temperature climates
• Molybdenum disulfide, anti-oxidation, rustproof, and high-performance

The Outlaw DHT Axle exceeds OEM standards and has stand-out features not found in other after-market competitor axles such as puncture resistant boots crafted from premium-grade TPE (Thermoplastic Polyester Elastomer)
