CT Race Worx Can-Am Maverick R Radius Rod Kit, High Clearance

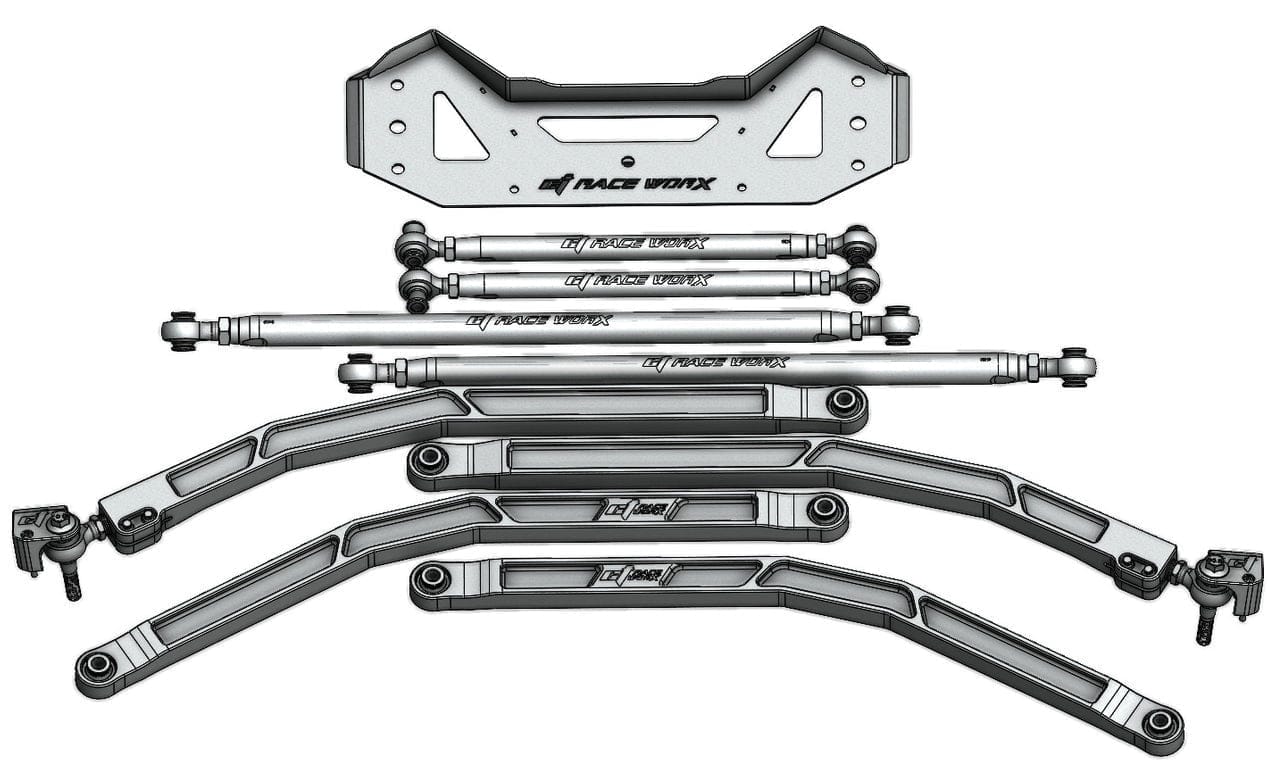

CT Race Worx Pro Edition High Clearance Radius Rod Kit For The Maverick R

Massive Ground Clearance And Pro Billet Strength, This Can Am Maverick R Radius Rod Kit Covers All The Rods Bars And More To Give You Strength And Clearance.

Comes Black Anodized (Shown In Raw)

CT Race Worx is leading the way with innovation for the Maverick R with our Pro Rock Maverick R Radius Rod Kit.  Fully adjustable on the car, ultra high clearance radius rods for the Maverick R that are made for people looking for huge ground clearance gains and built for abuse.

They first started with moving the rear sway bar up on the chassis.  To do that we needed to create a bolt on mount that would retain stiffness and rigidity for the sway bar mounting while positively locating everything.  Once we accomplished how to move the sway bar up, we then needed to create different sway bar links to keep the sway bar from inverting at full suspension droop.  Our rear sway bar links are made from 1-1/8″ 7075 aluminum using 5/8″ FK JMX joints with 303 stainless spacers.

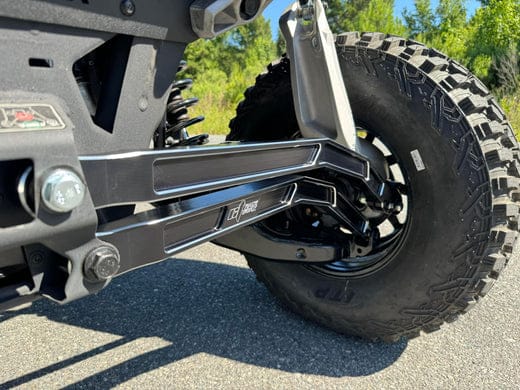

Both lower and middle radius rods are produced from 1.5″ thick American Made 7075-T6 aluminum plate and house 3/4″ FK WSSX uniballs with 303 stainless spacers which gained a HUGE 3-1/8″ of clearance making them nearly even with the axle shaft through parts of the suspension arc.

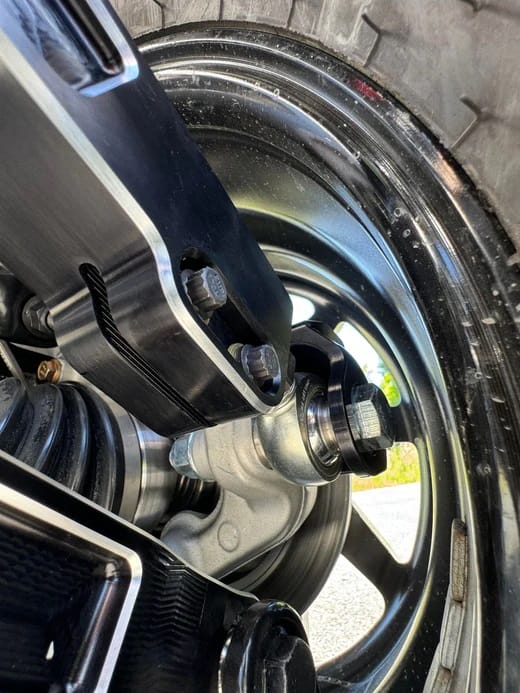

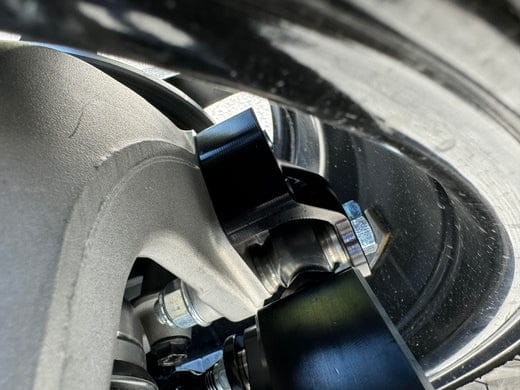

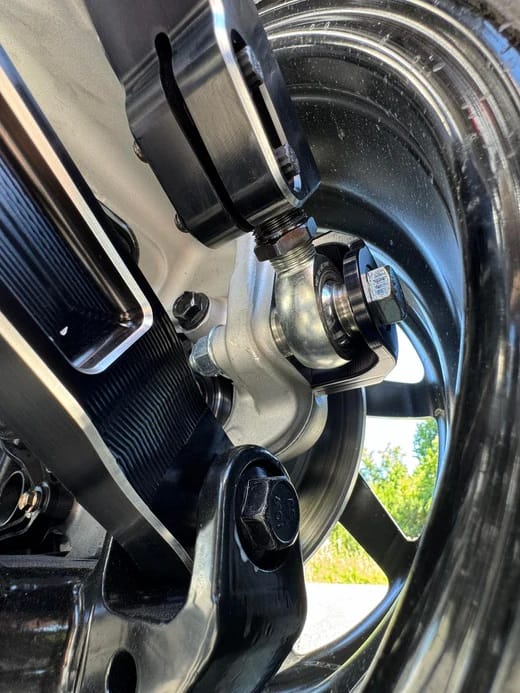

The lower also features a huge chamfer on the front lower face of the rod to help you slide over obstacles when you come in contact with them.  The middle rods feature our single point adjuster that makes setting toe on the car a breeze with a 3/4″ FK JMX joint.   On the spindle, instead of reusing a tapered stud like the factory balljoint a patent pending setup for the middle radius rod by producing a billet double shear bracket with 14mm hardware making install and removal fast and easy.

The upper radius rods are made from 1.25″ solid round 7075 for strength easy adjustability using 3/4″ FK JMX joints and 303 stainless spacers.

We favored the 3/4″ uniball overs 7/8″ for one reason, and one reason only – strength and material around the uniball.  7/8″ while they sound appealing due to size thinned the wall thickness down too much for our likely, even while using the stronger 7075 material.

Both upper and lower rods are 100% symmetrical so there is no left hand or right hand rod, racers – this means you only need to carry one spare in case of an emergency.

These radius rods offer everything you could ask for, no expense was spared.

Like always, our parts carry a lifetime warranty.

7075 Billet Properties:

Yield Point – 74,000 psi
Brinell Hardness – 150
Elongation at Break – 10%
Shear Strength – 48,000 psi
Strength to Weight Ratio: 196 kN-m/kg
