High Lifter Polaris Ranger XD Front Control Arms

High Lifter Forward Front Control Arms For Ranger XD Series

These Polaris Ranger XD Control Arms Are 25% Larger Than OEM, and 2 1/2 times wall thickness. Maximize Clearance And Axle Protection. OEM Replacement.

Whether you ride in deep mud or over rocky trails, the need for stronger Ranger XD Forward A Arm control arms with added ground clearance is extremely important.

Most stock arms are too weak to withstand what you put your bike through and lack the added ground clearance needed for challenging trails. High Lifter arms maximize ground clearance by strategically arching the lower control arms while following the angle of the axle for maximum clearance, axle protection, and visual appeal.

Don’t be fooled with too much arch that puts your axles into greater risk of damage. Our precision manufacturing process ensures each control arm installs exactly like the factory arm. Depending on the model, most kits will have the High Lifter logo precision cut into the bracing.

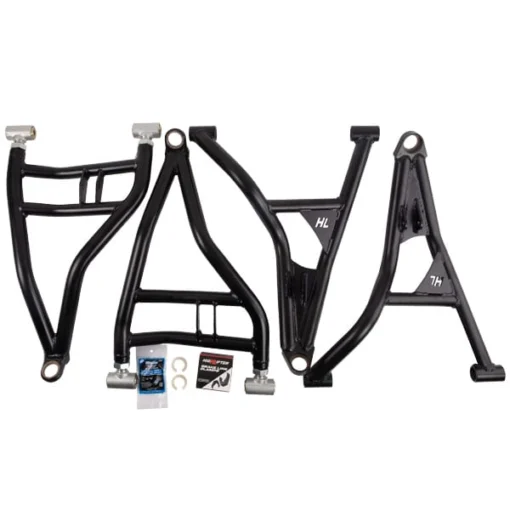

• This is A Set Of 4 Arms
• Uses OEM Ball Joints And Bushings

Heavy Duty Strength

High Lifter’s new heavy duty control arms add more support than factory. The upper control arms that come stock on a Polaris Ranger are more robust than the stock lower control arms, leaving the lower arms more vulnerable to damage.

Our upper and lower arms are made with the same material for added strength, so they can withstand the abuse applied during a typical ride.

High Lifter arms are constructed out of 1.5” DOM with .120 wall tubing. This is a 25% increase in size and a 2.5x in steel thickness for added durability and strength.

Features:

• Arched Design: Increases ground clearance by up to 1.75″ compared to OEM arms, allowing for larger tires and improved obstacle clearance.
• 1.5″ Forward Rake: Optimizes suspension geometry for better handling and stability.
• Adjustable Camber: Heat-treated collars with 1″ threads offer over 3 degrees of camber adjustment in each direction for precise alignment.
• Heavy-Duty Construction: Made from 1.5″ x .120″ DOM steel tubing for maximum strength and durability.
• High Lifter APEXX Ball Joint Compatible: Accommodates heavy-duty ball joints for improved performance and longevity. Pro tip: Select the APEXX Ball Joint installed version to save time and get on the trails quicker!
• Ladder Bar Compatible: Works seamlessly with ladder bars using 1.5″ ID clamps for added suspension stability.
• Optimized Sway Bar Linkage Angles: Improves sway bar functionality for better cornering and handling.
• OEM Brake Line Mounting: Utilizes OEM tabs for secure and reliable brake line mounting.
• Limited Lifetime Warranty: Covers defects in materials and workmanship (excludes wear items).

Standard HD Upgraded

Features

• Manufactured from 4130 Chromoly Steel
• Stronger than OEM Ball Joints
• Durable, Tough, and Long Lasting Zinc Plated Finish
• Uses Lithium Grease
• Quality OEM Factory Replacement

APEXX Rebuildable

Features

• 2x Stronger than OEM Ball Joints
• 4340 Chromoly Housing, Bushing, Cap & Stud
• Oversized Sphere and Stud Diameter with Optimized Profile
• Fully Serviceable & Rebuildable for Increased Longevity and Reliability
•  1-year Limited Warranty
