CFab Honda Pioneer Lift Kit, Forward Front Arms, Bracket Kit
From: $929.99
ALWAYS FREE SHIPPING
As Low As 0% Up To 24 Months, Visit Financing Options!
Vehicle Product Fitment Listed Below

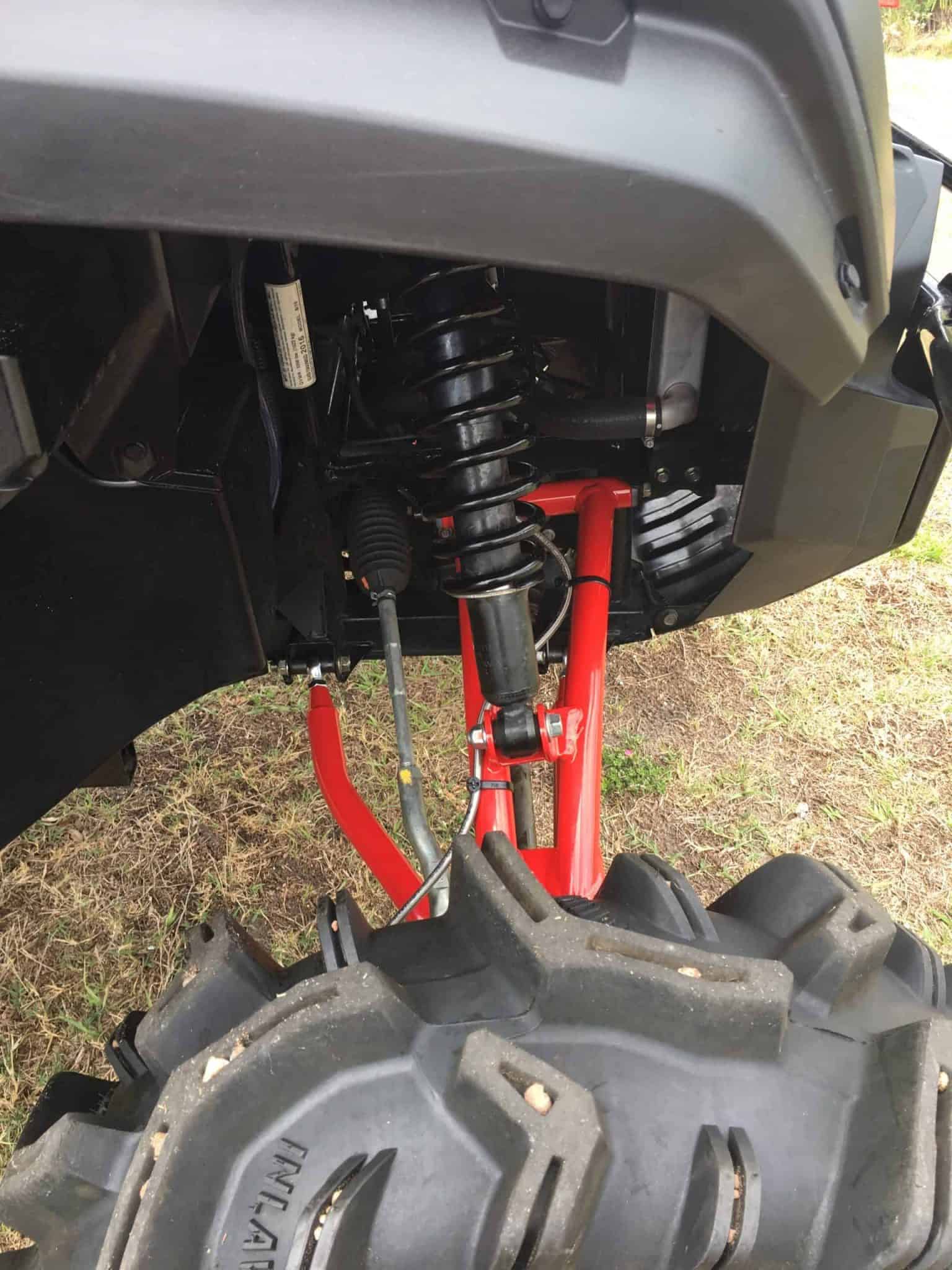

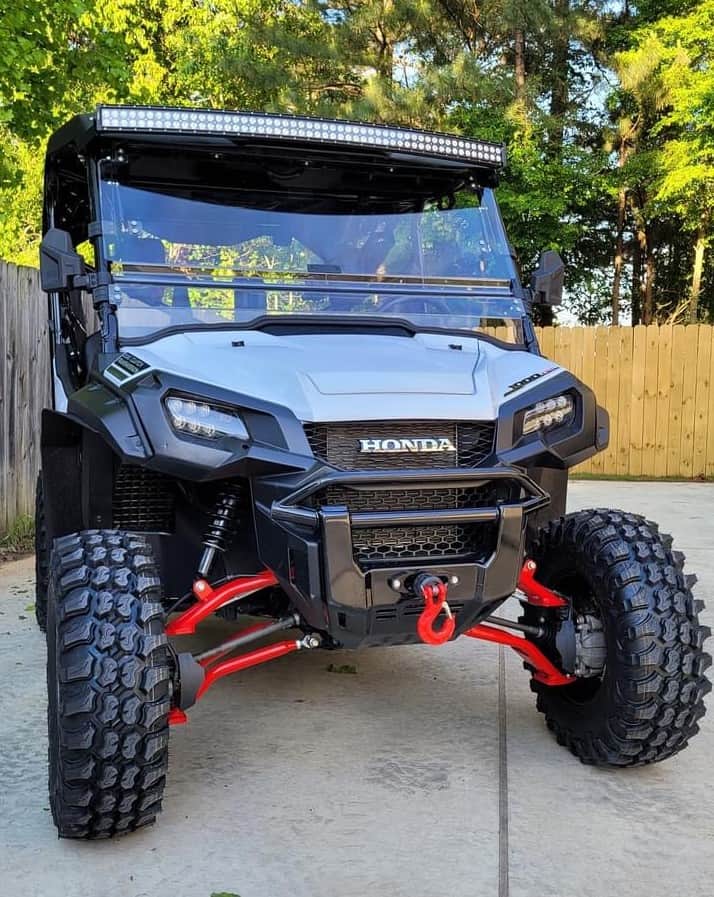

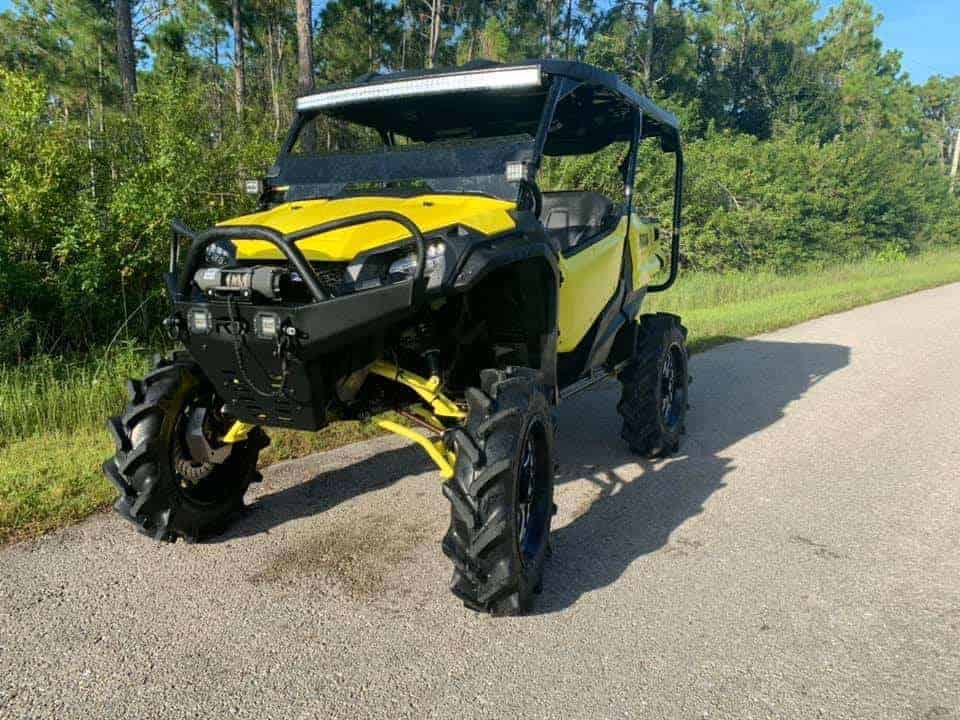

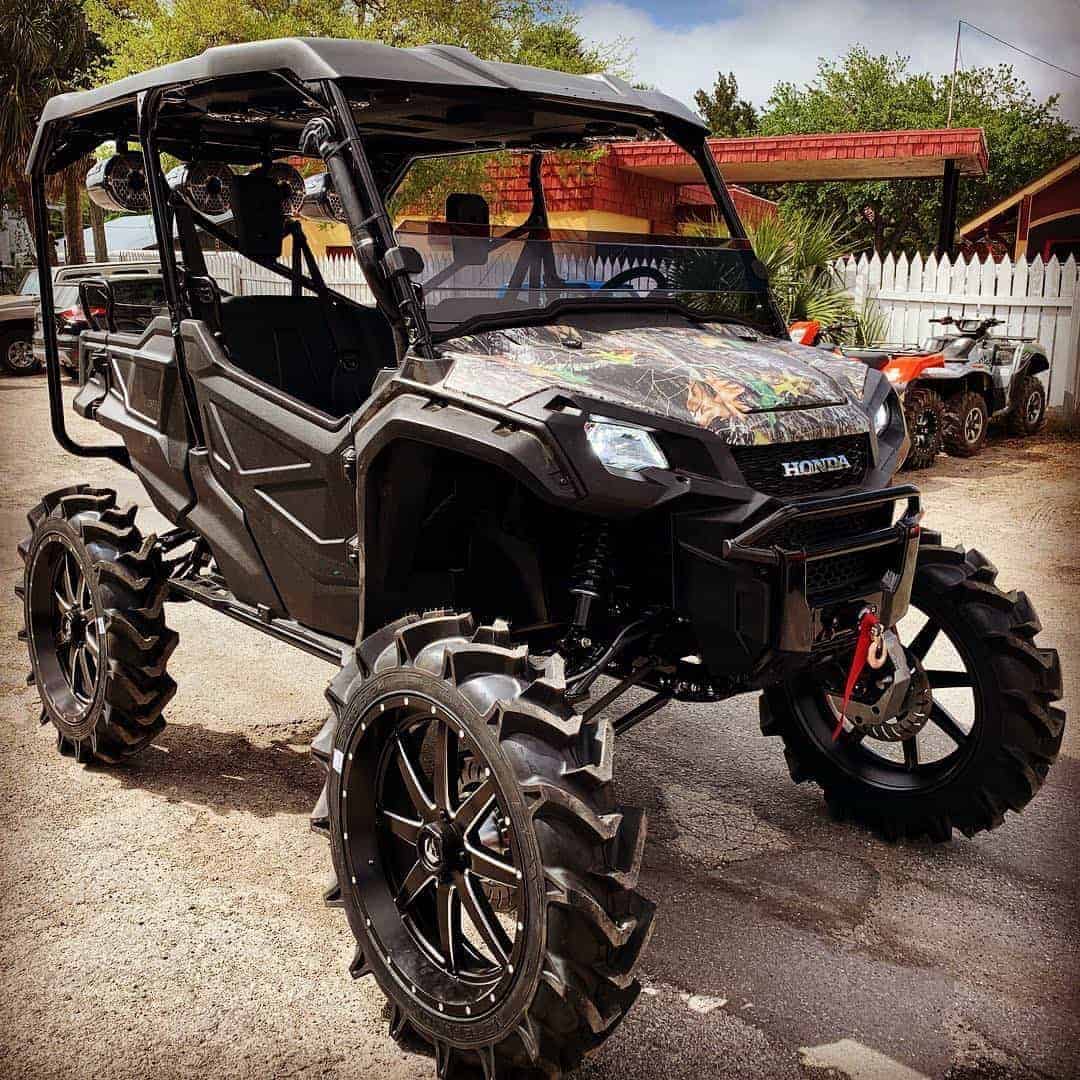

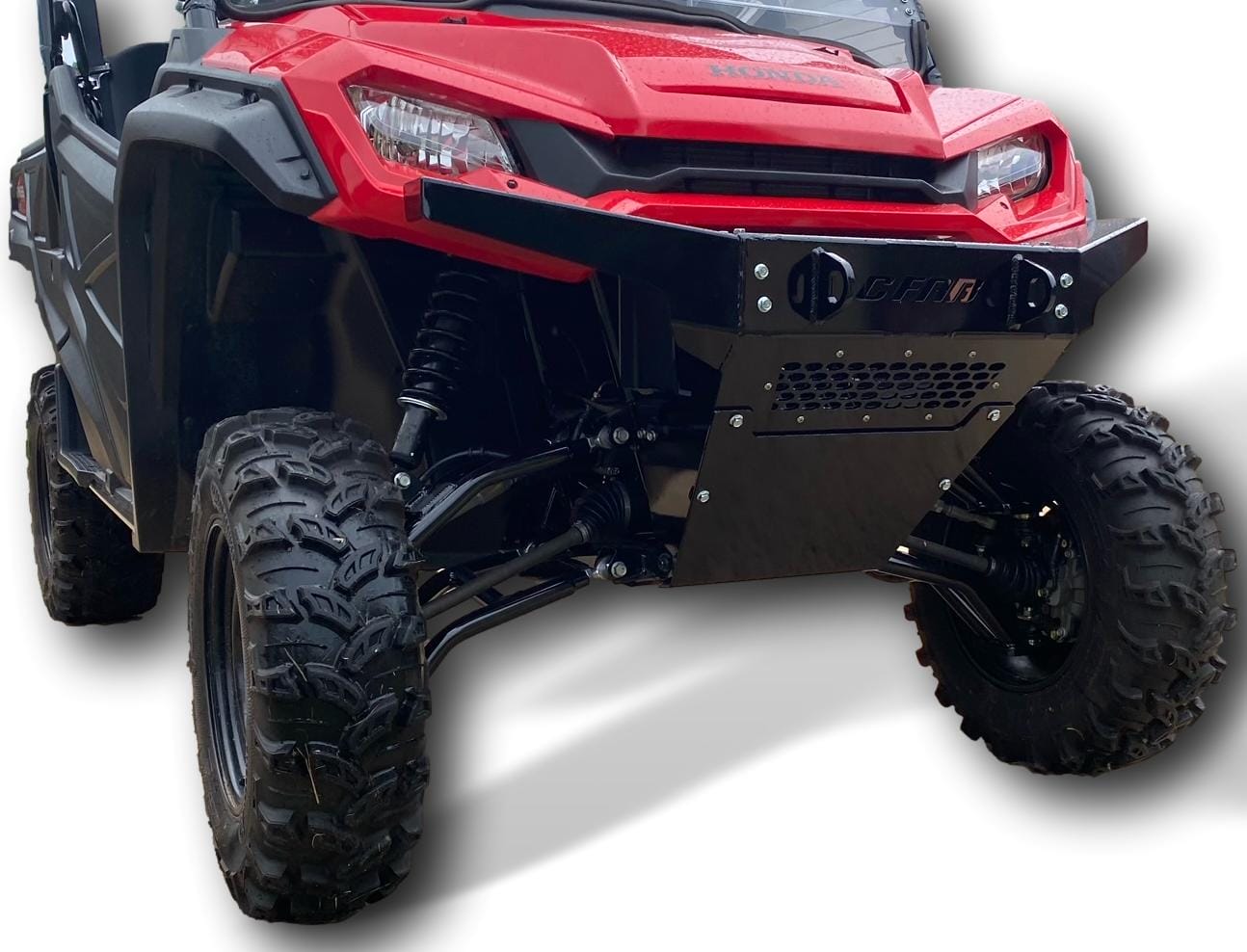

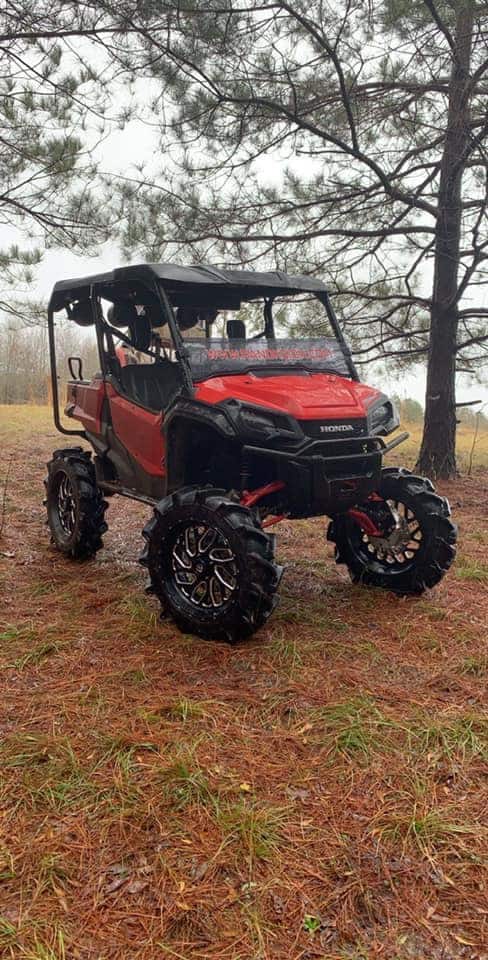

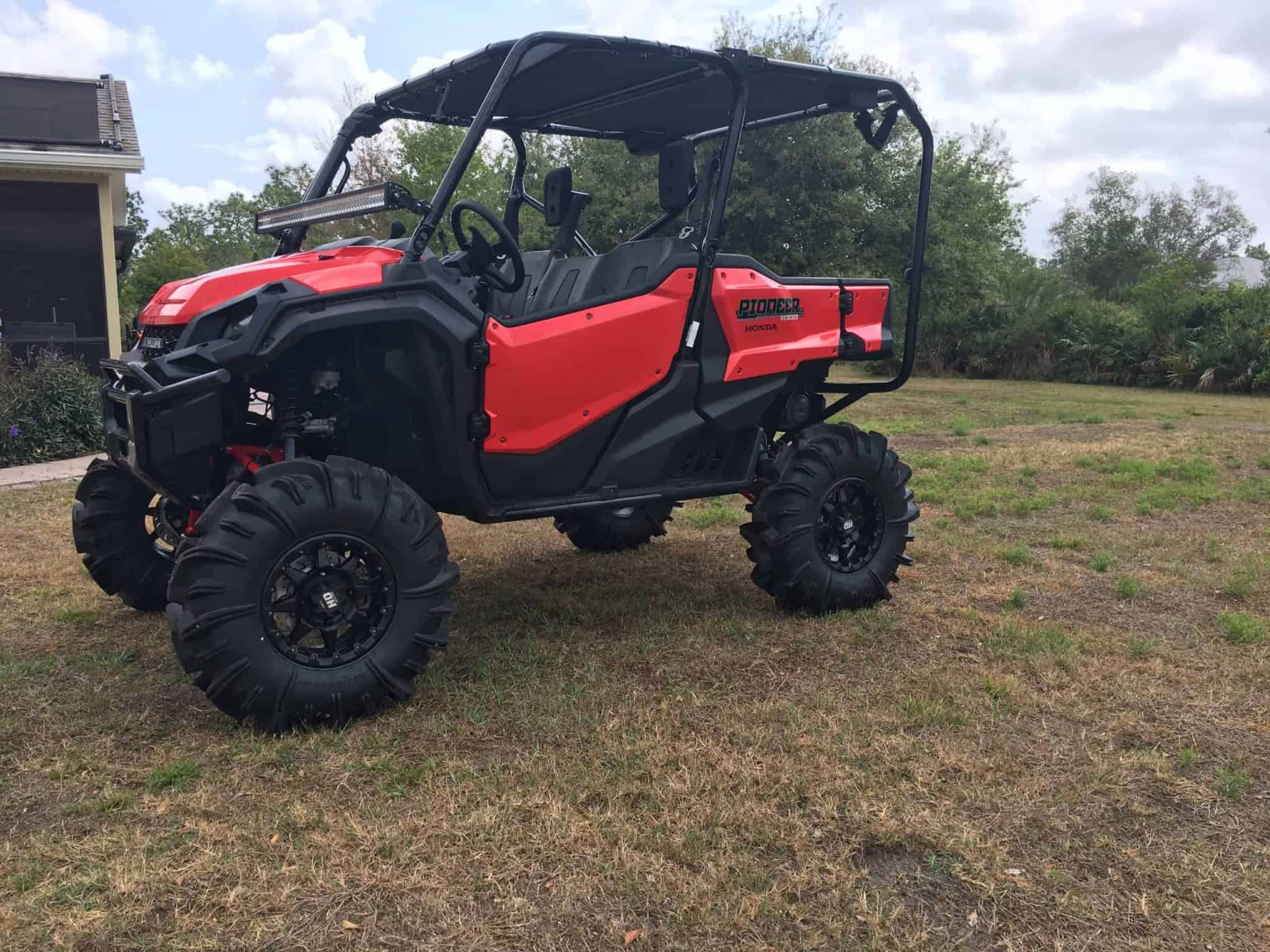

C Fab Forward A-Arm Kit Plus Lift for Honda Pioneer 1000 Models
C Fab Honda Pioneer Lift Kit Plus Forward A-Arms Constructed fo 1.25″ x 188″ DOM wall tubing. Features 2″ of rake, 3″ of Lift. Complete Kit, Arms and All
These Pioneer 1000 Lift Kit Arms are constructed fo 1.25″ x 188″ DOM wall tubing.

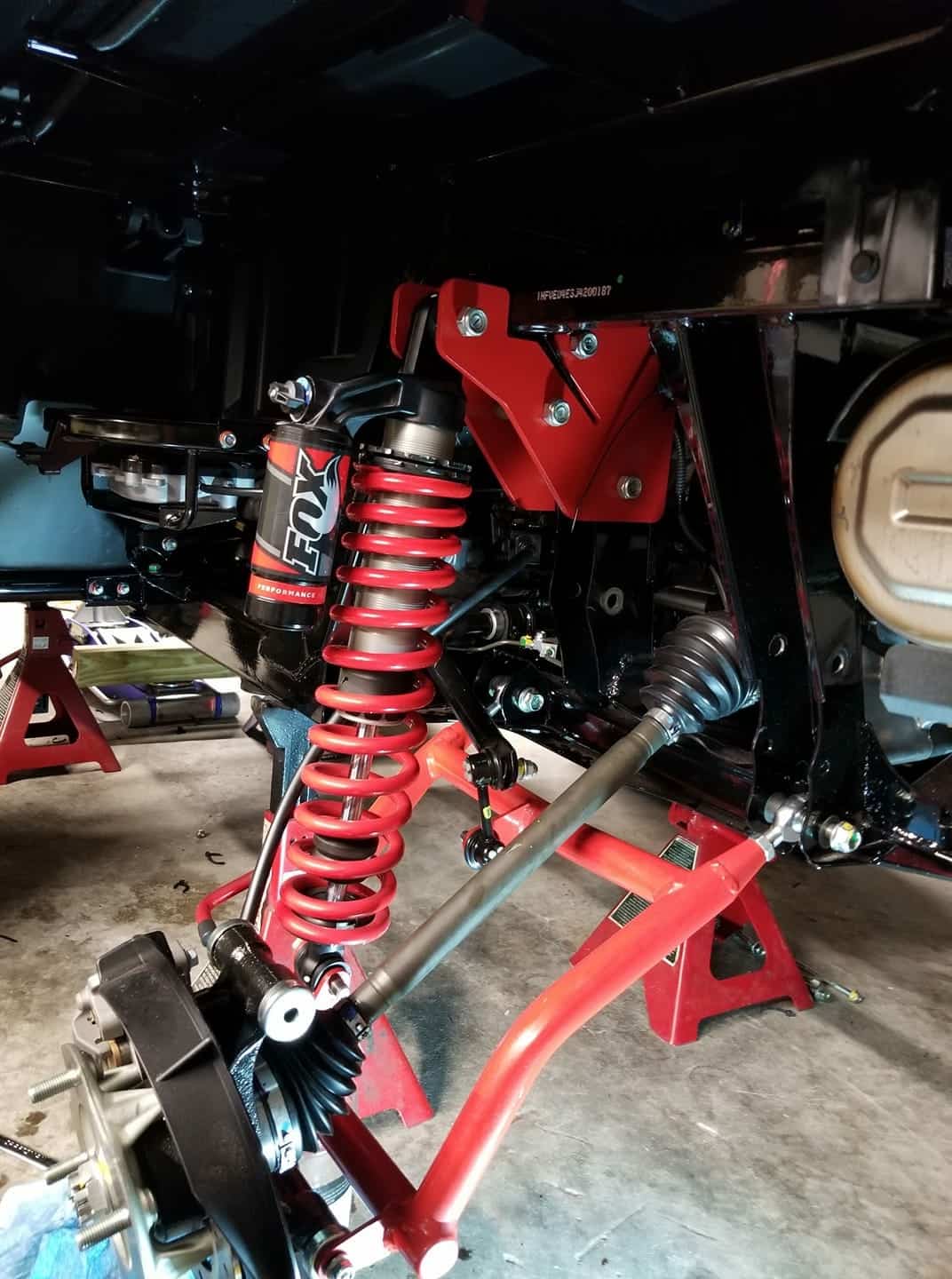

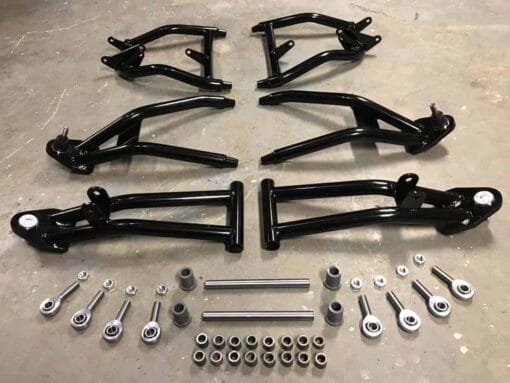

This complete Pioneer 1000 Lift Kit includes, 4 Front Forward arms and Rear Lower Arms
2021 And Older Models:
- Uses Included Upgraded Bushings.

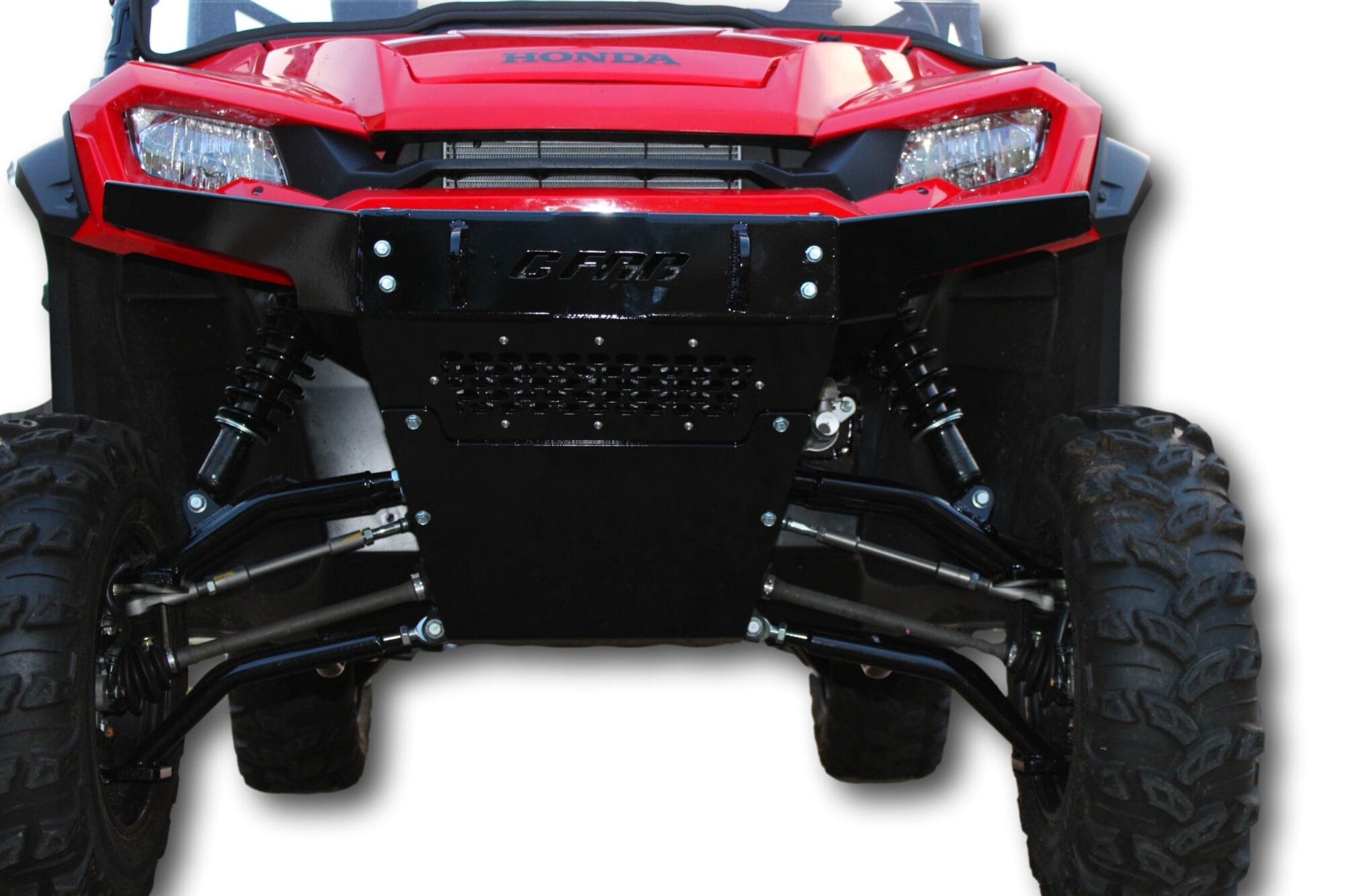

- 2″ Of Front Rake

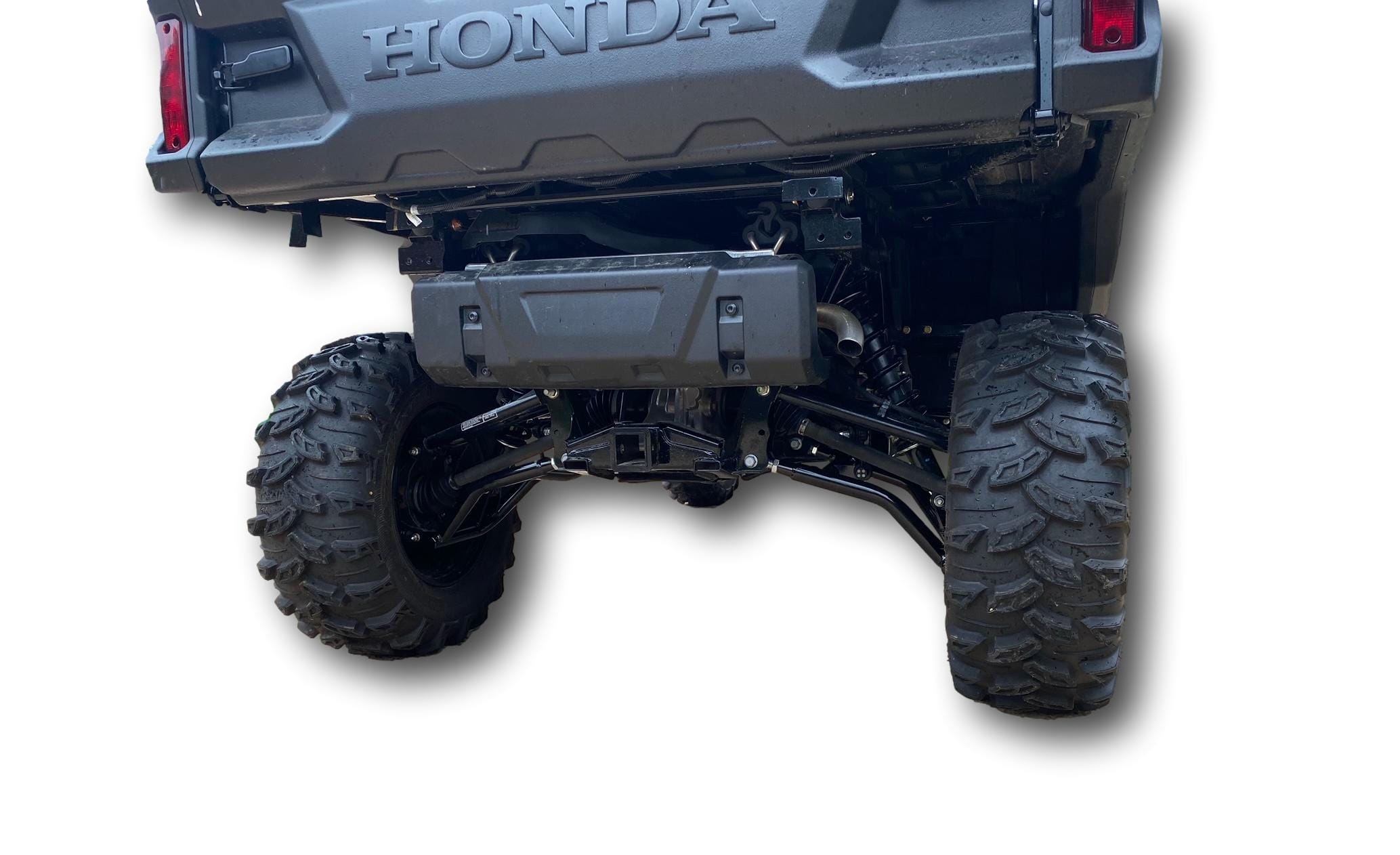

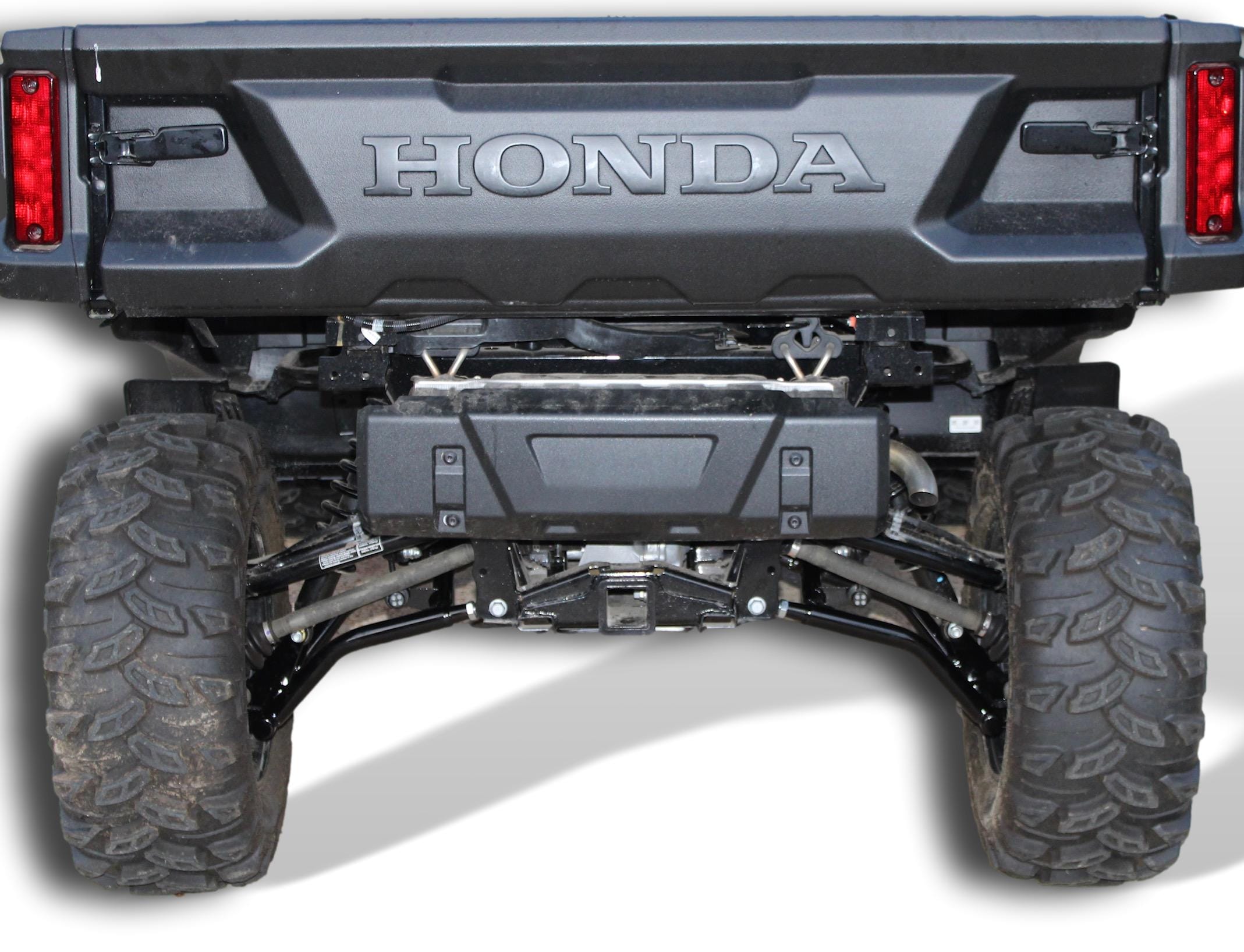

- 3″ Of Total Lift, Built Into Front Arms And Uses Rear Bracket Lift
2022 And Newer Models:
- Replaces Bushings With Included Hiem Joints
- 3″ Of Front Rake
- 3″ Of Total Lift, Built Into Front Arms And Uses Rear Bracket Lift
Features

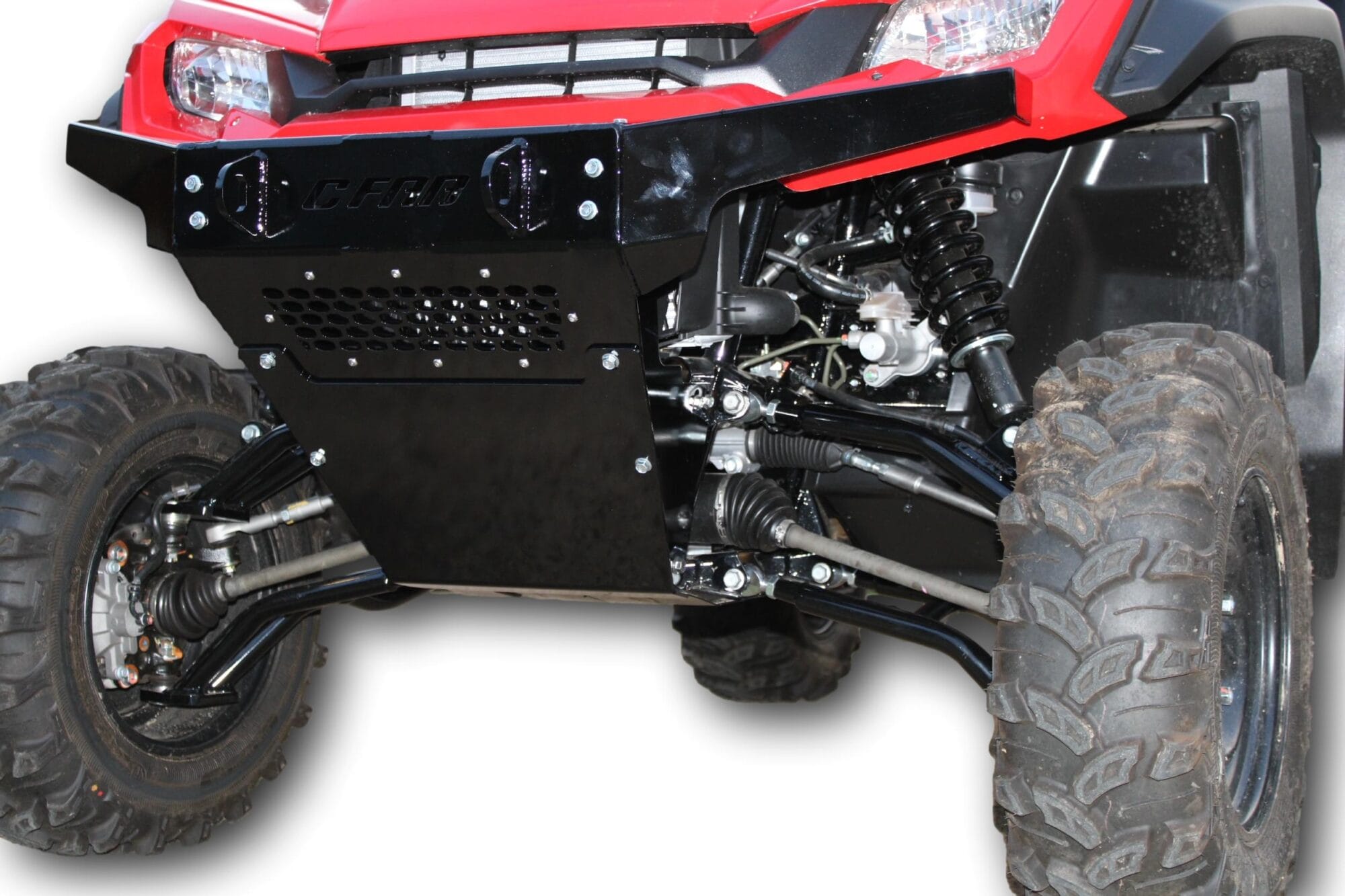

- Works with OEM tie rods and ends
- Comes with 5/8″ 4140 chromoly heim joints w/ teflon races for adjustability
- Perfect for running Portals 4-6″
- Upper front a-arms come with bushings, hiems included for 2022 newer models
- Run up to a 35″ tire with 4″ portals
- Run up to a 37″ tire with 6″ portals
- Fits 32″ tire without portals
- Stock wheels require 1.5″ wheel spacers
- Does not include ball joints
You Can add Ball Joints to your order, We Press them in for Free when purchased as a kit.
MADE IN THE U.S.A.
We Follow And Support C Fab’s LIFETIME WARRANTY against manufacturing defects On There Products.
This Warranity Is For The ORIGINAL PURCHASER ONLY.
Warranty does NOT cover improper installation. Any Product MODIFICATION WILL VOID WARRANTY.
Warranty does not cover fabricated parts That Are Added To The Machine.
Due to the modifications made by installing fabricated parts, CFAB can not be held responsible for any breakage of other parts or personal injuries. Improper installation may cause failure that will not be warrantied.
This Warranity Can Be Adjusted And Changed By CFab At Any Time
If the product is considered to be replaced as warranty it is up to the customer to cover all coating/shipping costs.
Many of our Items are in Production when you order because of the massive volume, We are producing every day 24 hours a day because of the growth and expansion of our business.
Normal In-stock Products
We Process and ship all products 10-15 Business Days after orders are placed, we only ship Monday – Friday.
Fabricated and or Powered Coating.
Please Allow 7-8 weeks to process Fabricated and or Powder Coated Items.
We strive to ship products out sooner than that , and often times next day, but we can not guarantee that with standard, free shipping.
| Make | Model | Year |
|---|---|---|
| Honda Off Road | Pioneer 1000 | 2016 Pioneer 1000 - 2023 Pioneer 1000 |
| Honda Off Road | Pioneer 1000-5 | 2016 Pioneer 1000-5 - 2023 Pioneer 1000-5 |
| Honda Off Road | Pioneer 1000-6 | 2023 Pioneer 1000-6 |
Share your thoughts!
Let us know what you think...
What others are saying
You may also like…
UTV BODY
$474.99
Sales And Promotions
About Us
Contact Us
Info and FAQ’s
FAQ/Help
American Off-Roads Shipping and Warranty Policy
American Off-Roads Shipment Protection
Return Policy
Terms & Conditions
Our Story
Shop Off Road Products
Loyalty Rewards Program
Financing Options
News & Blog
Track your order
Question
Daltont1998 –
Will it fit on a 2018 p1000 limited edition?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
aor –
This kits on all Pioneer 1000 Models, Yes they work on the limiteds.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
k.how14 –
Will these work on a 2014 700?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
aor –
Hello, sorry no. Only the 1000 because the 700 and 500 have totally different setups compared to the 1000
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
sgtblakley –
Will this work on 2021 LE been told won’t because of i4wd
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
aor –
Since you are swapping the entire arm setup out these will work with that model.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
flece100 –
Can I use my stock axles
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
aor –
Hello, Yes this kit reuses your OEM/Stock Axles. Anything larger then this lift you need to change axles, that’s one of the reasons after this height we recommend portals.
