KFI Products Complete Snow Plow Setup For Foreman 500 And 520 Models
Industry Leading Made In America Honda Foreman Snow Plow Complete Package, Blade Size And Material Options, Turning Options With Accessories For Bolt On Snow Removal

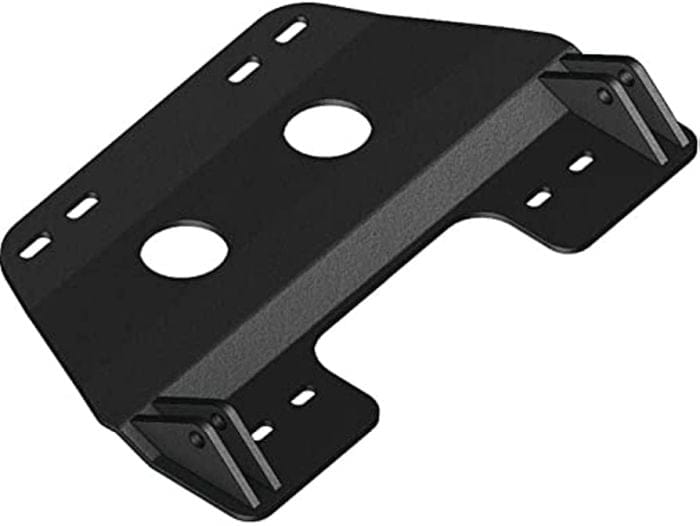

This Plow Package Comes with Your Choice of Plow Blade, Push Tube And Foreman Mount.
Complete Honda Foreman Snow Moving System For The Home And Business operations, These Foreman Plow Setups Give You The Options Needed To Handle The Biggest Winters.
If you are running tracks you will need a push tube extension which can be added onto the order while adding items to your cart, To Shop Extra Items Please See: “KFI Products Snow Plow Accessories”
Many Install Guides And Overviews In Guides/Install Tab Above
Choose Plow Blade:

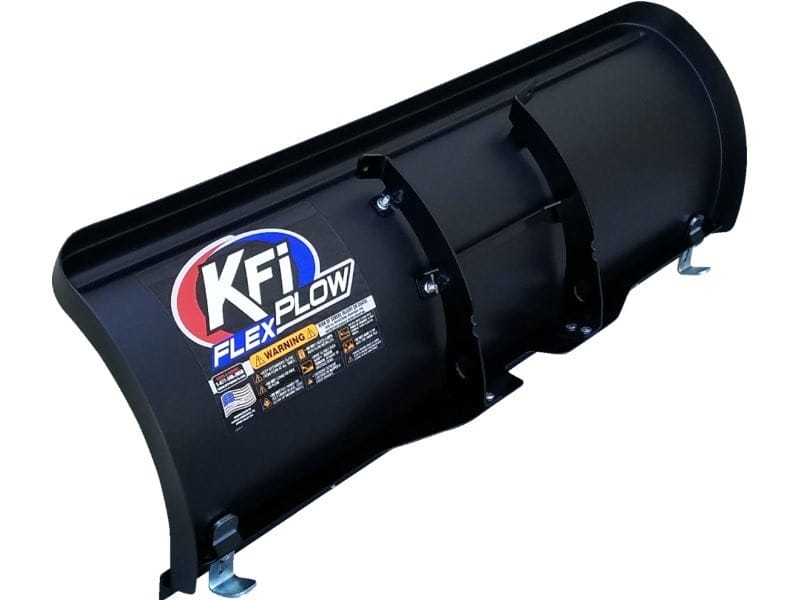

Pro Flex Blade:
- Rolls snow off to the side, great for continuous plowing of long driveways and paths
- 100% MADE IN USA
- Lightweight Blade fully assembled at 25lbs.
- 50” width Flexible Black Poly Vacuum formed face
- 3/16” and 10 gauge Grade 50 Steel Rib and Frame construction
- Shot Blasted and Powder Coated Black
- 2-Sided 3/16” Grade 50 Steel wear bar
- 17” Vertical blade face height
- Works with current KFI No.105000 or 105590 ATV Tube System
- 1/4” thick Adjustable Skids
- Complete installation instructions included
- All mounting hardware included
- 1-Year KFI Warranty

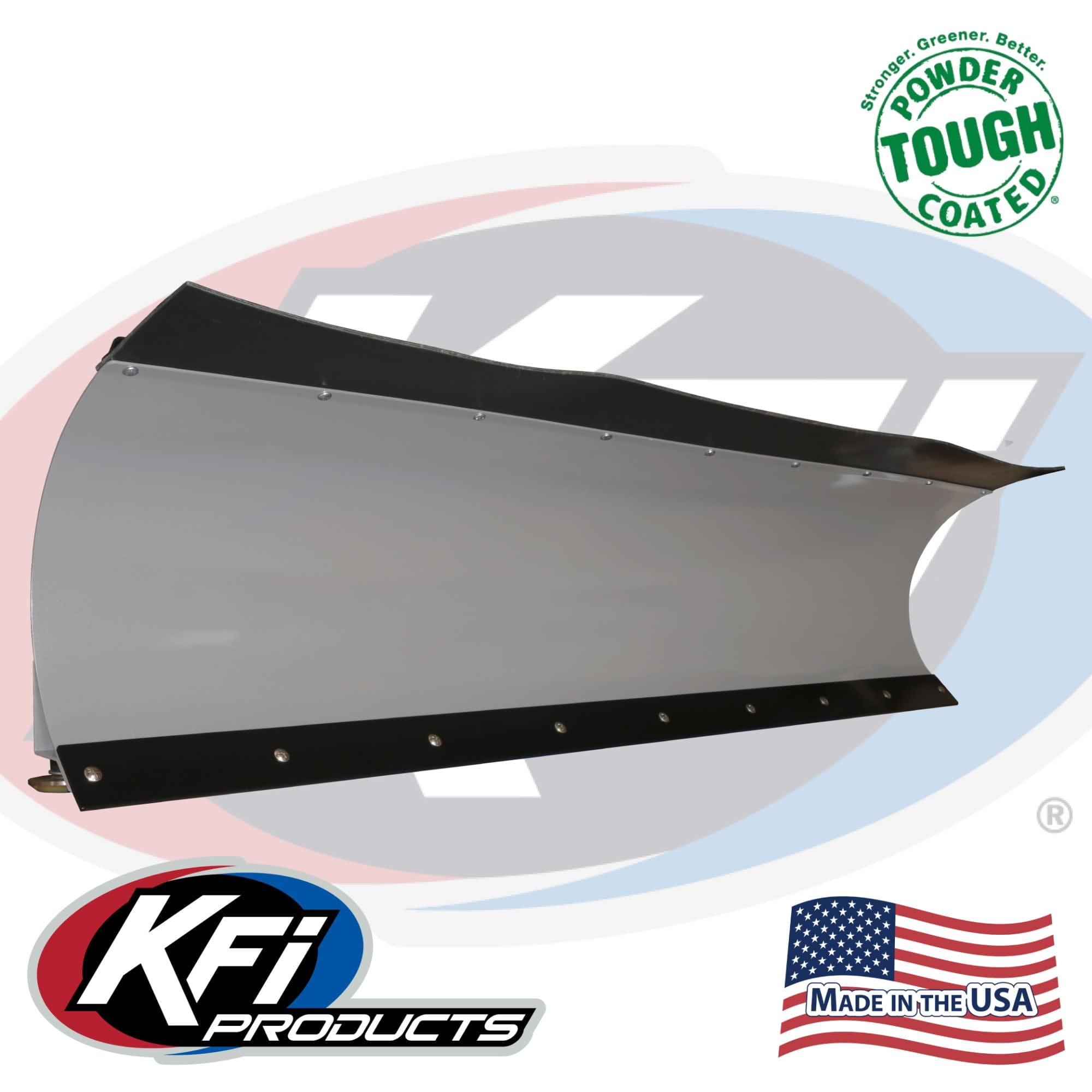

Pro Steel Blade:
- 100% MADE IN USA
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gussets for the wider width
- The 66″ & 72″ blades include a 7″ high 2-ply top rubber flap
- Measures 16” Vertical blade face height with an approximate 21” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3″-diameter grade-50 steel skid plates
- Blade Constructed of 11 ga steel
- 3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
- Powder Coated Metallic Silver for supreme durability
- 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- 2-Year KFI Warranty

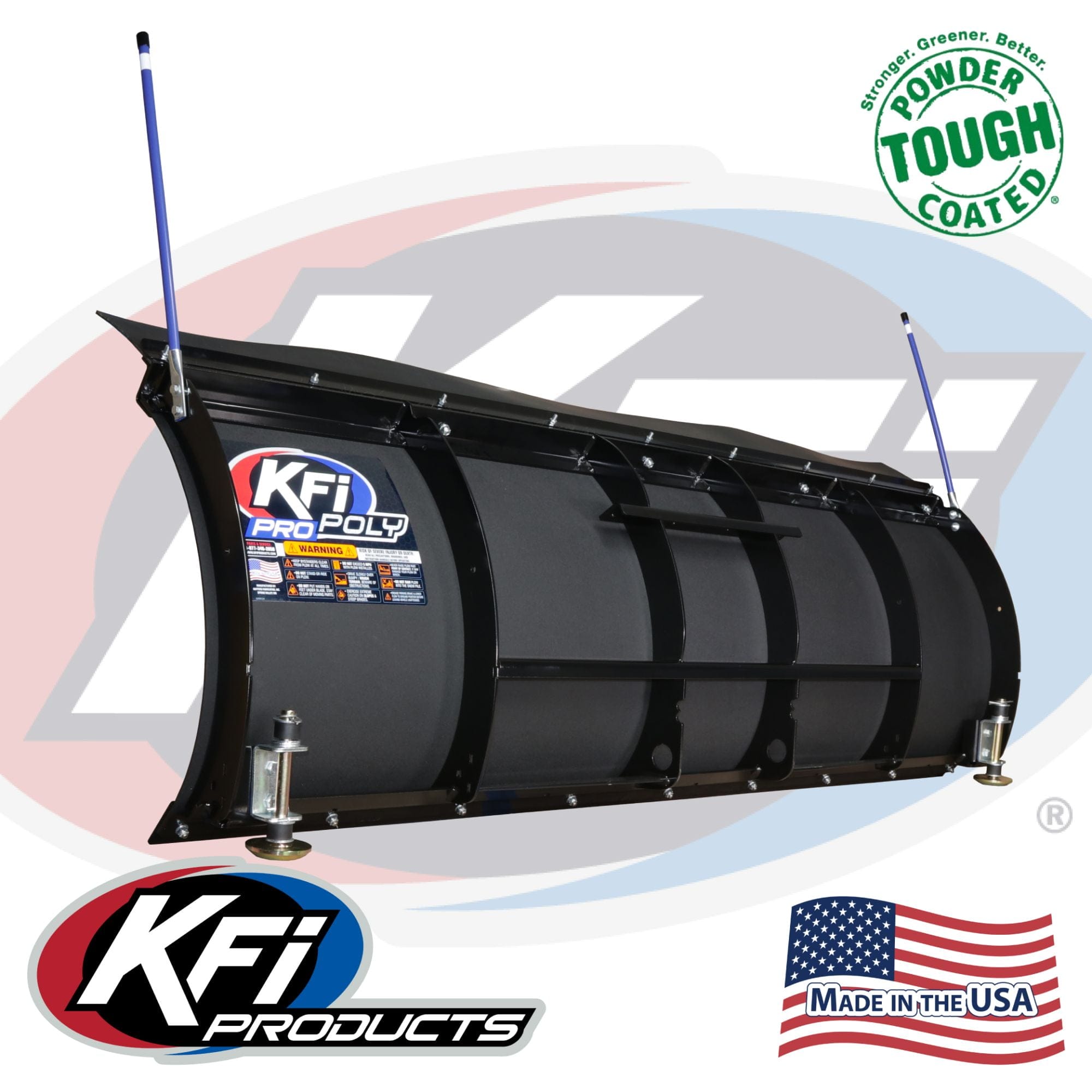

Pro Poly Blade
- Includes a 7″ high 2-ply top rubber flap
- 100% MADE IN USA
- Dual Curvature face for supreme snow moving
- 21” Vertical blade face height with an approximate 27” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3″-diameter grade-50 steel skid plates
- Flexible Heavy Duty Black Poly face
- 3/16” Grade 50 Steel Rib and Frame construction
- 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- Works with KFI ATV & UTV Tubes
- Includes Plow Markers
- 2-Year KFI Warranty

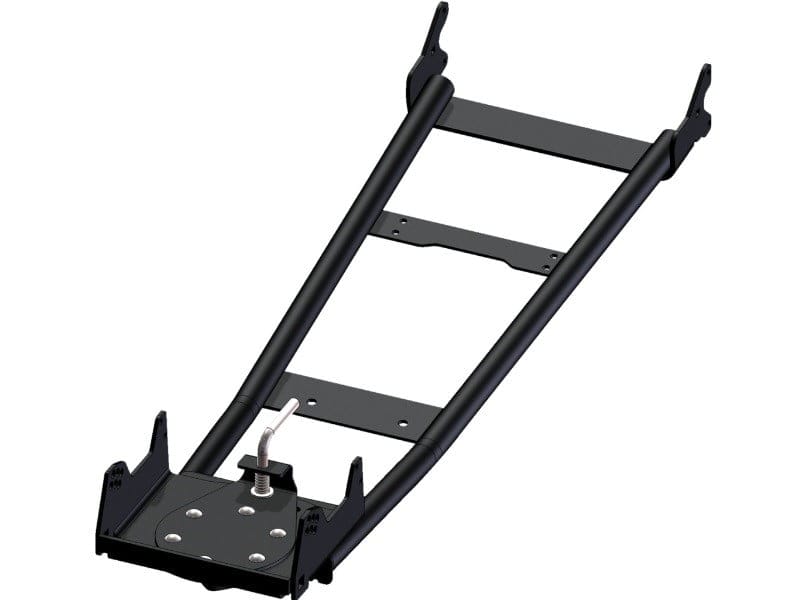

Included Push Tube:
- Easier Install For All Plow Accessories
- Added 2.5″ Of Overall Length
- Front Mount Design with 30″+ of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2″ 12 Gage Square Steel Tubing
- Heavy Duty 1/4″ Thick 1-1/2″ Diameter Grade 50 Pivot Bushings
- 6″ Diameter POM Injection Molded Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Powder Coated Black for supreme durability
- 2-Year KFI Warranty
Add On Options:
Plow Turning Option
Includes Wiring Harness And Mounts Will Not Work On Flex Blade
Upper Flap Kit
Used On Steel Blades Only, Poly 60 Is Included No Flex Blade
Top Markers
Only Needed On Steel Blades, Poly Has Them Included
Push Tube Extension
Extends The Plow blade Out, Needed When Running Tracks
Add On Blade End Shields
These Attach to the ends of the plow to help reduce snow and dirt overflow:
Blade Box Side Shield
Sold As A Pair For Poly Blades
3/16” Grade 50 Steel Powder Coated Black
Adds 2-1/4” Width to size of blade per Shield
Blade Tapered Side Shield
Sold As A Pair For Poly Blades
3/16” Grade 50 Steel Powder Coated Black
Adds 5.6” Width to size of blade per Shield
Blade Side Shield – Box End
Sold As A Pair For Steel Blades
3/16” Grade 50 Steel Powder Coated Black
Some Drilling Required
Blade Tapered Side Shield
Sold As A Pair For Steel Blades
3/16” Grade 50 Steel Powder Coated Black
Adds 2-1/4” Width to size of blade per Shield
