KFI Products Complete Snow Plow Setup For General Models
Industry Leading Made In America Polaris General Snow Plow Complete Package, Blade Size And Material Options, Turning Options With Accessories For Bolt On Snow Removal
This General Plow Package Comes with Your Choice of Plow Blade, Push Tube, And General Mount
Complete Polaris General Snow Moving System For The Home And Business operations, These Polaris General Plow Setups Give You The Options Needed To Handle The Biggest Winters.
Notes:
- If you are running tracks you will need a push tube extension which can be added onto the order while adding items to your cart.
Plow Pullies, Lift Kits, And Addtional Extra Options if needed Here: “KFI Products Snow Plow Accessories“
Many Install Guides And Overviews In Guides/Install Tab Above
Choose Plow Blade:

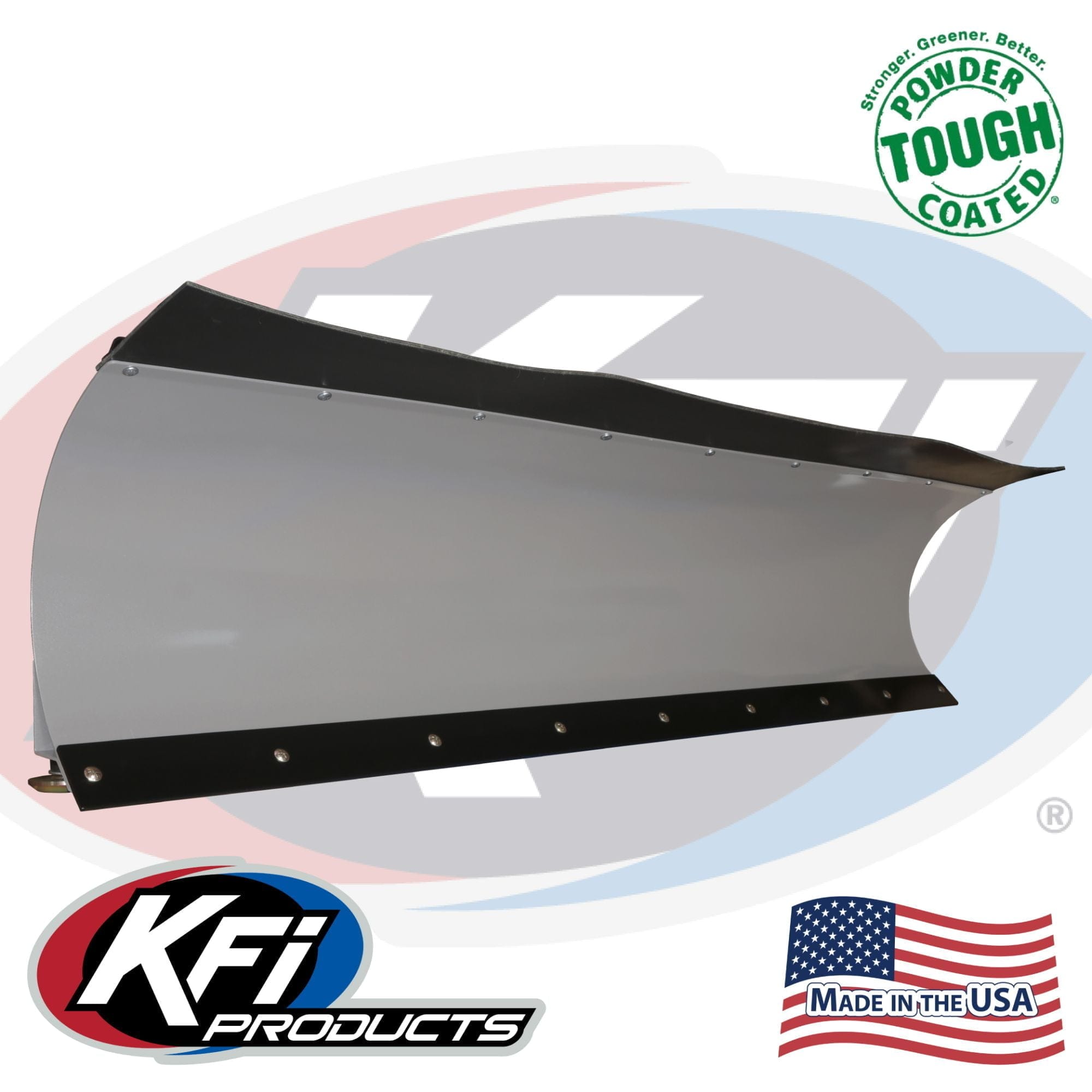

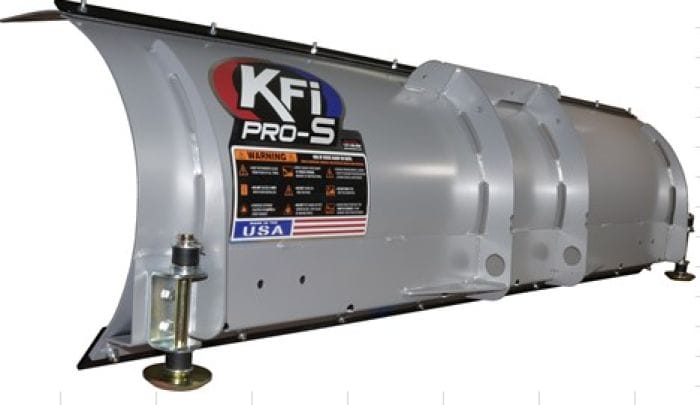

Pro Steel Blade:
- 100% MADE IN USA
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gussets for the wider width
- The 66″ & 72″ blades include a 7″ high 2-ply top rubber flap
- Measures 16” Vertical blade face height with an approximate 21” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3″-diameter grade-50 steel skid plates
- Blade Constructed of 11 ga steel
- 3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
- Powder Coated Metallic Silver for supreme durability
- 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- 2-Year KFI Warranty

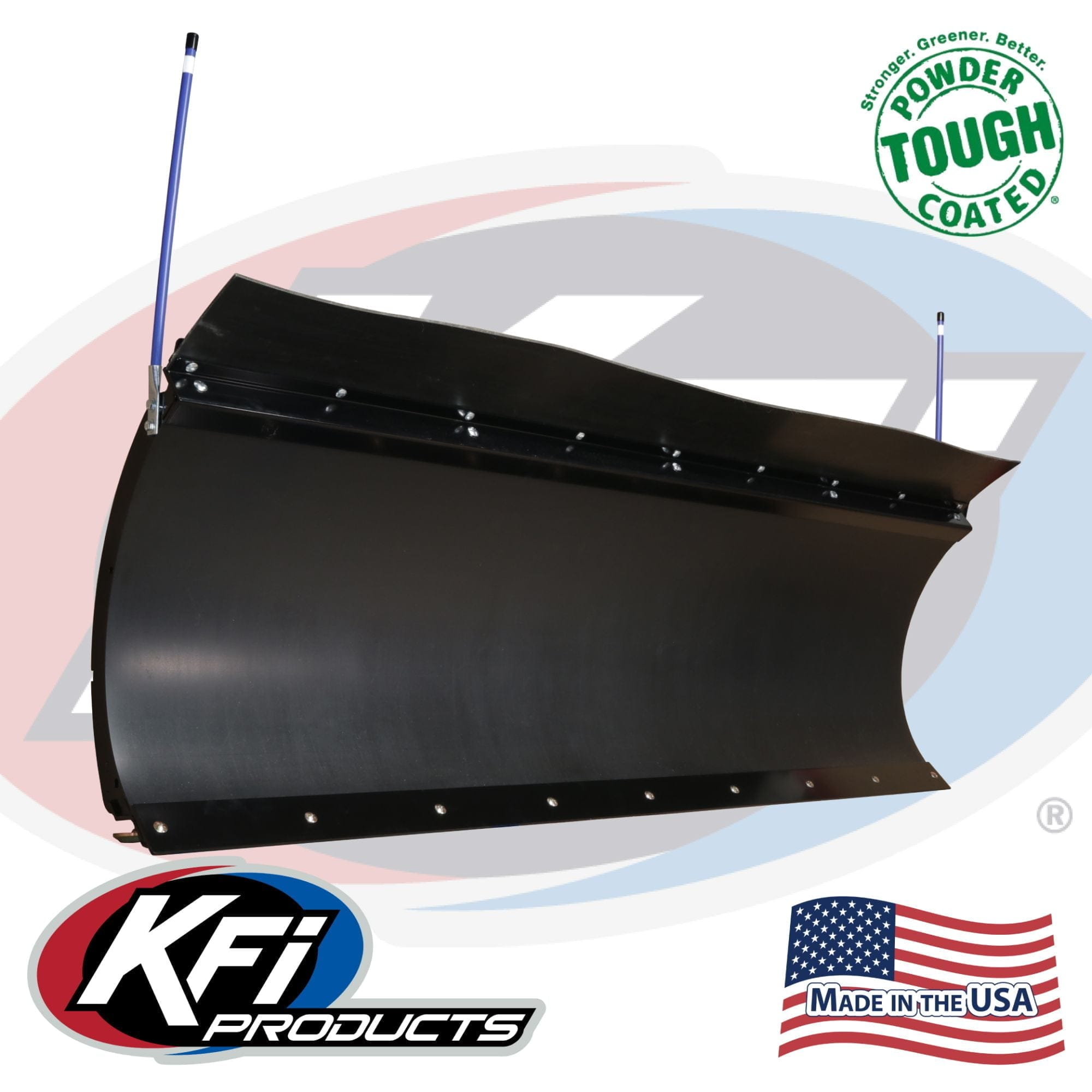

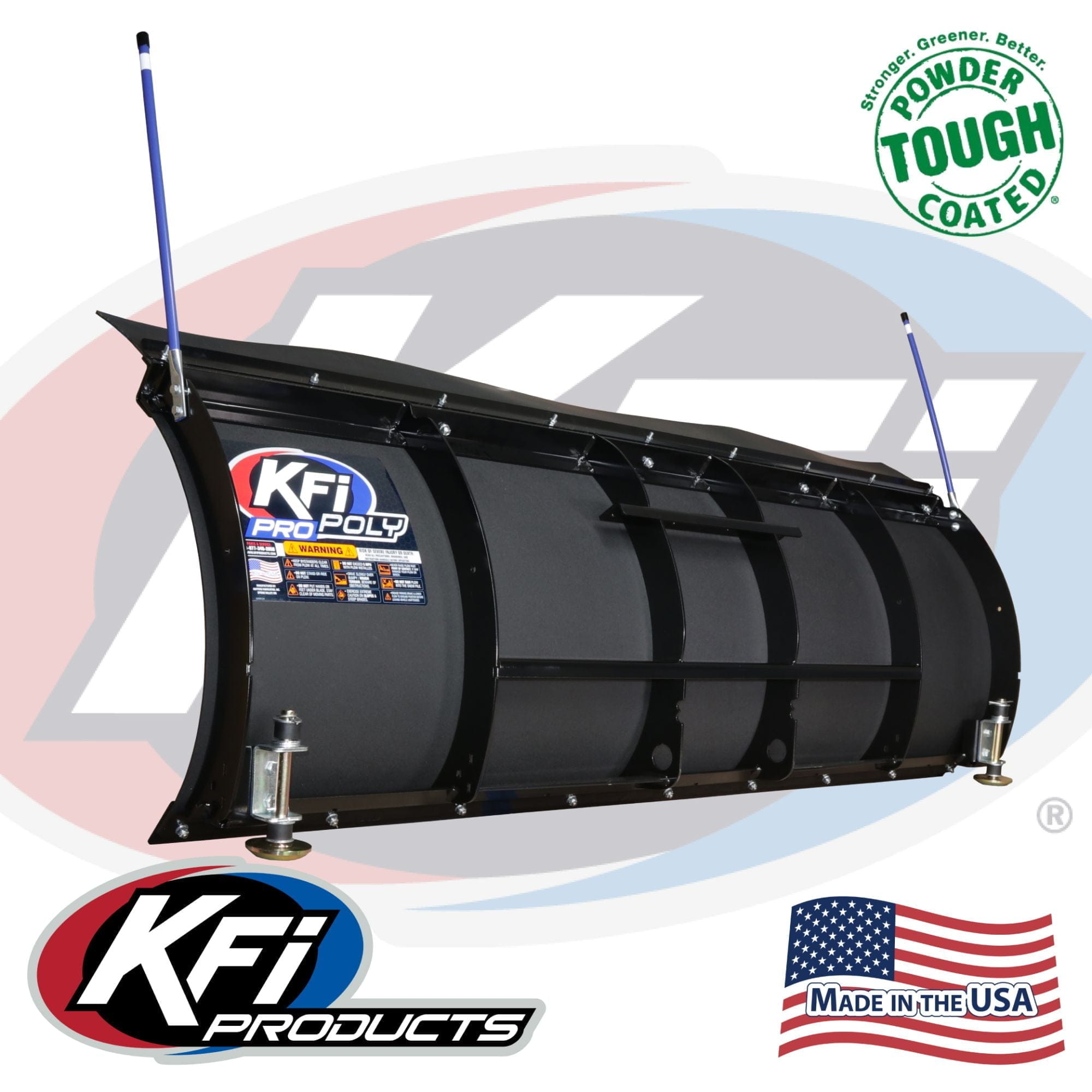

Pro Poly Blade
- Includes a 7″ high 2-ply top rubber flap
- 100% MADE IN USA
- Dual Curvature face for supreme snow moving
- 21” Vertical blade face height with an approximate 27” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3″-diameter grade-50 steel skid plates
- Flexible Heavy Duty Black Poly face
- 3/16” Grade 50 Steel Rib and Frame construction
- 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- Works with KFI ATV & UTV Tubes
- Includes Plow Markers
- 2-Year KFI Warranty

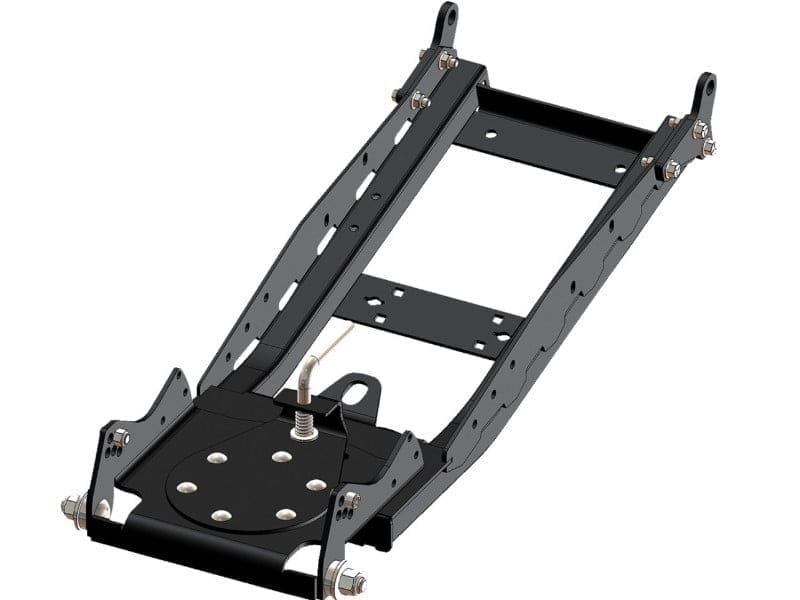

Included Push Tube:
- Easier Install For All Plow Accessories
- Added 2.5″ Of Overall Length
- Front Mount Design with 30″+ of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2″ 12 Gage Square Steel Tubing
- Heavy Duty 1/4″ Thick 1-1/2″ Diameter Grade 50 Pivot Bushings
- 6″ Diameter POM Injection Molded Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Powder Coated Black for supreme durability
- 2-Year KFI Warranty

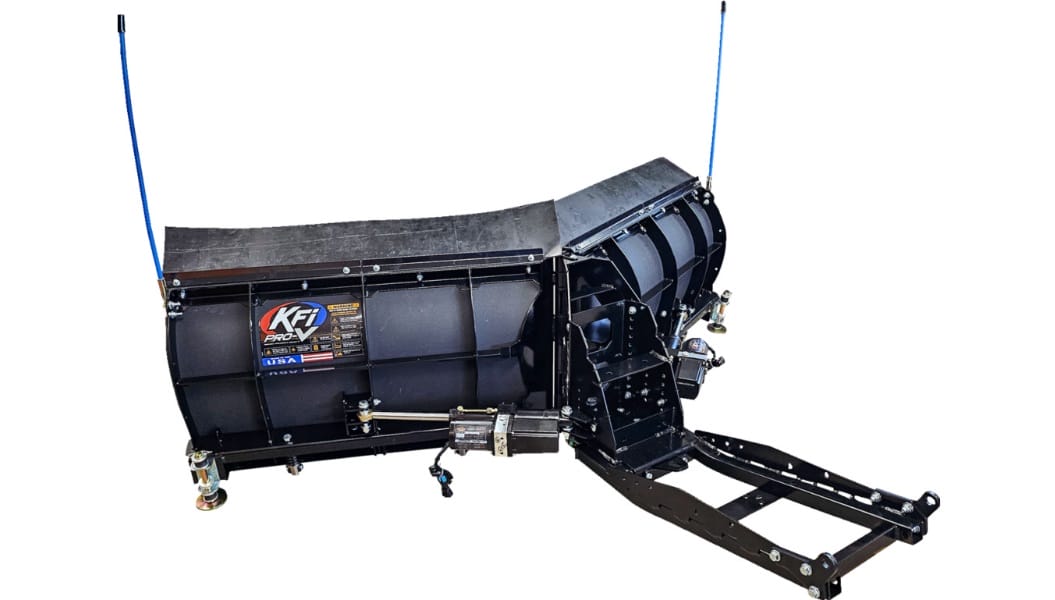

V-Plow Setup
The KFI Pro V-Plow System is a versatile four-part plow system designed to meet various operational needs.
Turning Options You Must Choose When Ordering:
Specifications:
- The Dual Adjustable Wings
- Constructed of Heavy Duty Grade 50 Steel
- Overall Length of 80”
- 20.5″ Tall (Without Plow Flap *Not Included in Package)
- Shot Blasted Before Powder Coating Black
- Replaceable Front Poly Face
- Tripping Wear Bar
- Comes Assembled
Must Choose Turning Option During Ordering
Hand Held All-Control KFI remote
Two Dash-Mounted LED Rocker Switches
Manual Operation system

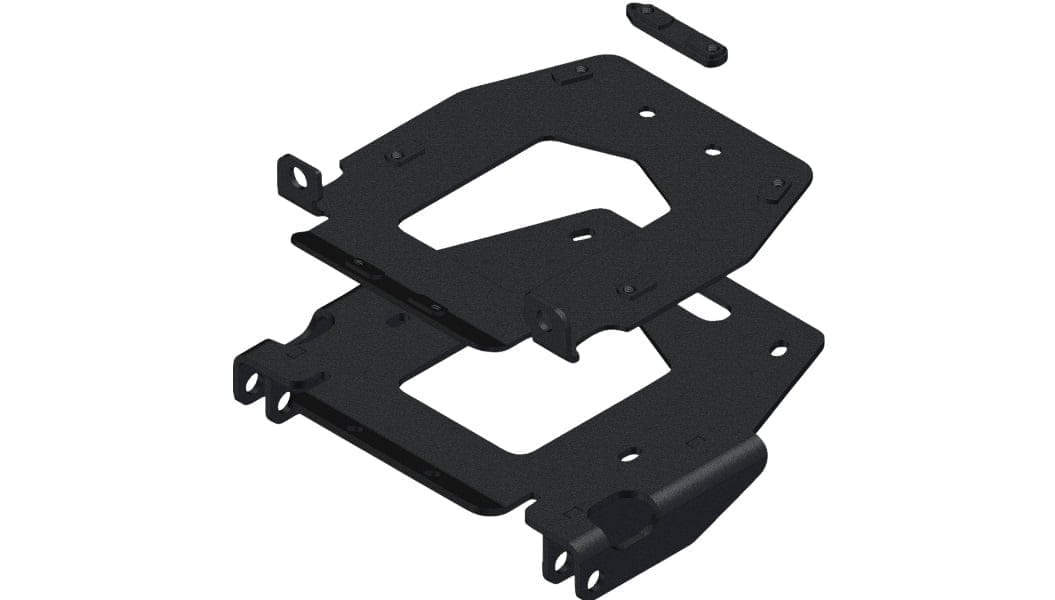

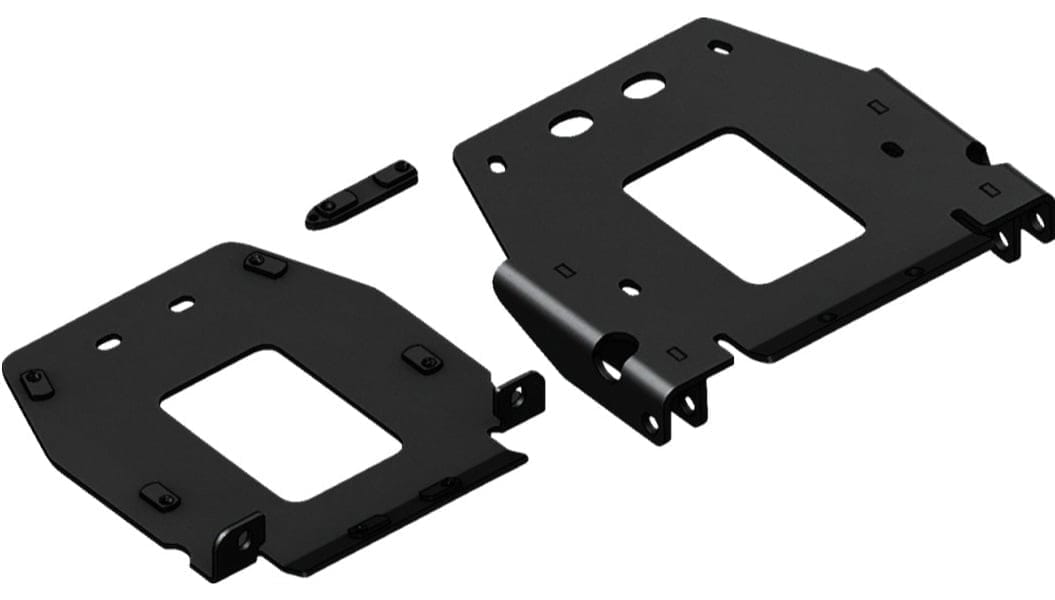

Included Accessories, Mounting
Add On Options:
Straight Plow Turning Option
Includes Wiring Harness And Mounts
Upper Flap Kit
Only Needed On Steel 60″ Blades, All Others Already Included.
Top Markers
Only Needed On Steel Blades, Poly And V-Plow Has Them Included
Push Tube Extension
Extends The Plow blade Out, Needed When Running Tracks, 2 Options, One For Straght Plow And One For V-Plow Setup
Add On Blade End Shields
These Attach to the ends of the plow to help reduce snow and dirt overflow:
Blade Box Side Shield
Sold As A Pair For Poly Blades
3/16” Grade 50 Steel Powder Coated Black
Adds 2-1/4” Width to size of blade per Shield
Blade Tapered Side Shield
Sold As A Pair For Poly Blades
3/16” Grade 50 Steel Powder Coated Black
Adds 5.6” Width to size of blade per Shield
Blade Side Shield – Box End
Sold As A Pair For Steel Blades
3/16” Grade 50 Steel Powder Coated Black
Some Drilling Required
Blade Tapered Side Shield
Sold As A Pair For Steel Blades
3/16” Grade 50 Steel Powder Coated Black
Adds 2-1/4” Width to size of blade per Shield
