KFI Products Series Winches For UTV’s And ATV’s
While Riding The Trails Feel The Confidence Of Knowing You Have The Leading KFI Products Winch Onboard To Get You Out Of The Hardest Situations. Complete Setup
Whether it’s on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV, or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation.
The compact 4500lb ATV/UTV Series winches feature quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty, all metal turn clutch. All of the KFI winches are backed by a 1-year Limited Warranty and come with everything you need other than an ATV/UTV model specific winch mount.
Everything is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV/UTV winch mount.
Many Install Guides And Overviews In Guides/Install Tab Above
4,500 Winches Come With The Dash Switch Kit Already, You Can Add It On To The Other Sizes If You Would Like.
Shop More Here: KFI Products
Whats Included With Assault Winch
2,000 And 3,500 Winch
Include Mini-Rocker Switch that comes with an adjustable bracket to mount it to your ATV’s handle bars and allows you to control your winch with the touch of your finger

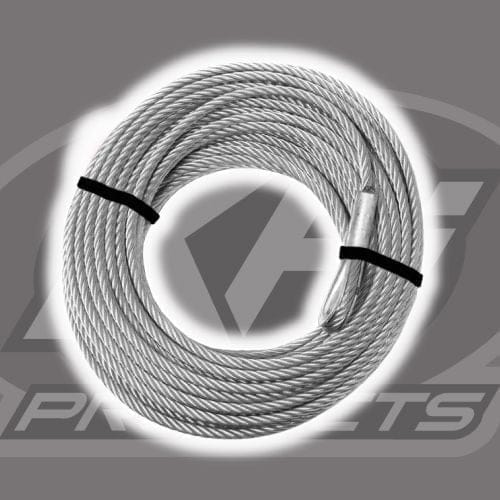

Metal Line
Super duty galvanized aircraft cable, Can be used on other brand winches, Heavy-duty cable loop thimble on hook end
3,000 And 4,500
Included a Handheld 14′ Corded Remote for those situations when you need to control your winch from a distance or dismounted from your machine.
4,500 Winch Only
Included UTV Dash Rocker Switch. It comes with the switch and the wiring harness with the plug for easy install. Comes with a blue led light inside to light up.

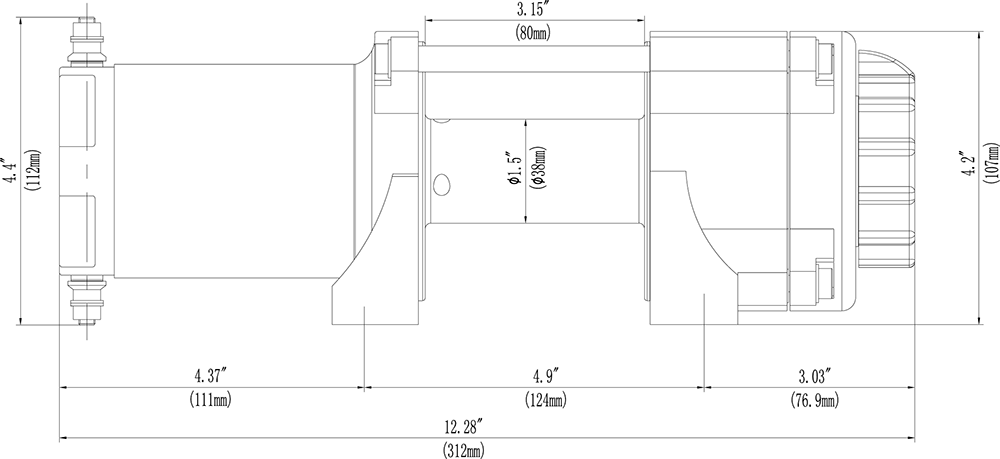

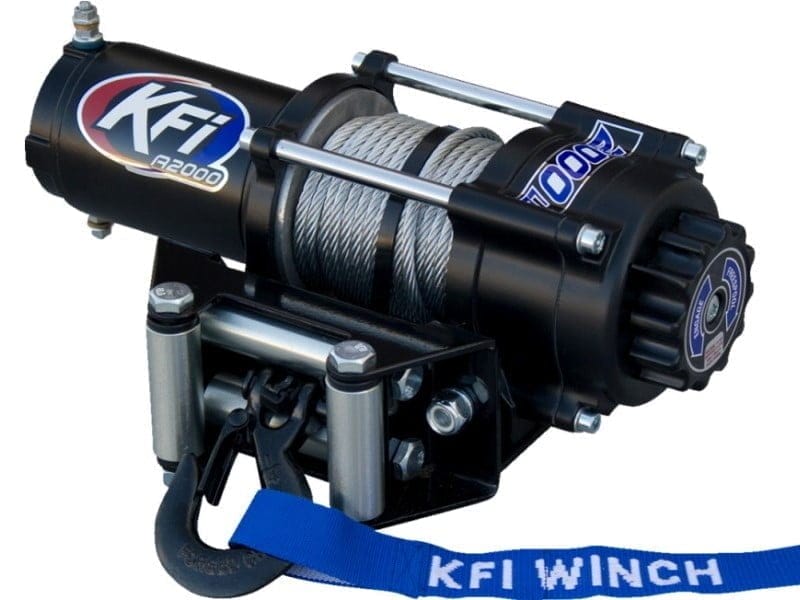

2,000 LBS Winch
Model | A2000 ATV Series |
Rated Line Pull | 2000 lbs. |
Motor | 12V DC, 1.1 hp Permanent Magnet |
Gear Ratio | 171:1 |
Gear/Transmission | All-metal Planetary Gear Drive |
Brake | Dynamic and Mechanical |
Clutch (free spooling) | All Metal Cam Activated Freespool |
Drum Size | 1.5″ (D) x 3.15″ (L) |
Cable | 5/32″ (D) x 49′ (L) |
Fairlead | Multi-directional Roller |
Control | Deluxe Handlebar-Mounted Mini-Rocker Control Switch |
Winch Dimensions | 12.28″ L x 4.2″ D x 4.4″ H |
Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
Mounting Bolt Pattern | 3.00″ x 4.875″ (4-Hole) |
Recommended Battery | 12 Amp/hour minimum |
Warranty | Limited 1 Year |
Winch Weight | 24.8 lbs. (complete kit) |

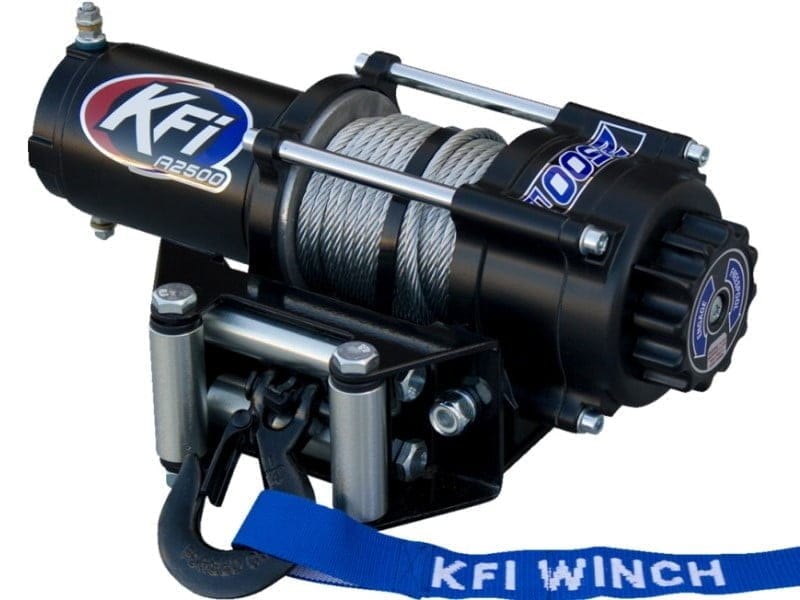

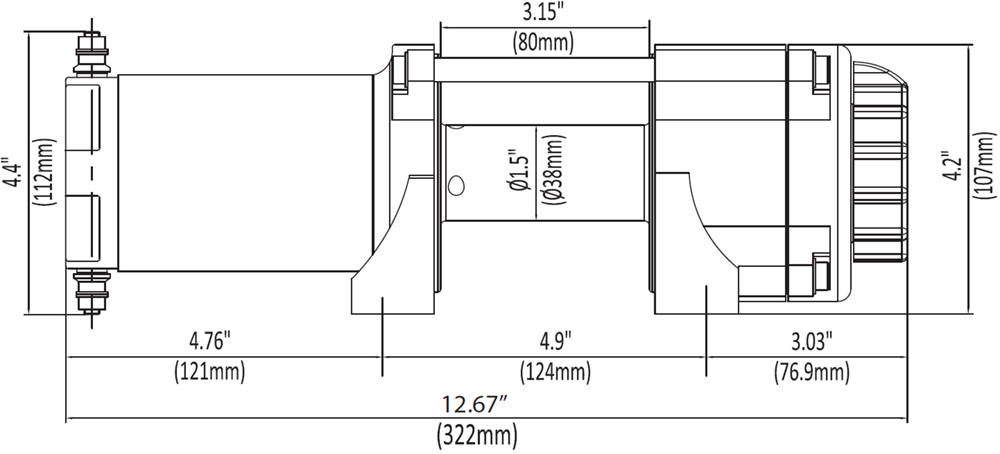

2,500 Winch
Model | A2500-R2Â ATV Series |
Rated Line Pull | 2500 lbs. |
Motor | 12V DC, 1.1 hp Permanent Magnet |
Gear Ratio | 171:1 |
Gear/Transmission | All-metal Planetary Gear Drive |
Brake | Dynamic and Mechanical |
Clutch (free spooling) | All Metal Cam Activated Freespool |
Drum Size | 1.5″ (D) x 3.15″ (L) |
Cable | 3/16″ (D) x 45.9′ (L) |
Fairlead | Multi-directional Roller |
Control | Deluxe Handlebar-Mounted Mini-Rocker Control Switch |
Winch Dimensions | 12.67″ L x 4.06″ D x 4.29″ H |
Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
Mounting Bolt Pattern | 3.00″ x 4.875″ (4-Hole) |
Recommended Battery | 12 Amp/hour minimum |
Warranty | Limited 1 Year |
Winch Weight | 25.7 lbs. (complete kit) |

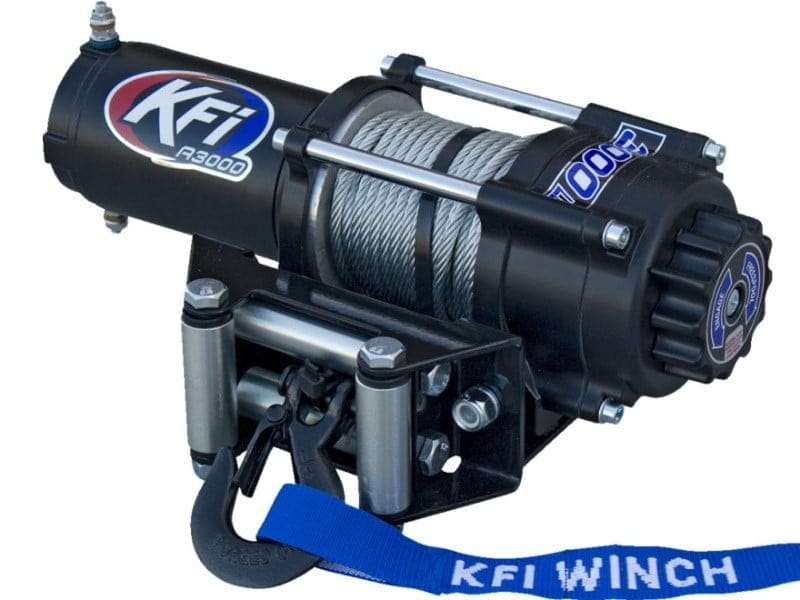

3,000 LBS Winch
Model | A3000 ATV Series |
Rated Line Pull | 3000 lbs. |
Motor | 12V DC, 1.3 hp Permanent Magnet |
Gear Ratio | 171:1 |
Gear/Transmission | All-metal Planetary Gear Drive |
Brake | Dynamic and Mechanical |
Clutch (free spooling) | All Metal Cam Activated Freespool |
Drum Size | 1.5″ (D) x 3.32″ (L) |
Cable | 3/16″ (D) x 45.9′ (L) |
Fairlead | Multi-directional Roller |
Control | Deluxe Handlebar-Mounted Mini-Rocker Control Switch and a Heavy Duty Corded Remote Switch |
Winch Dimensions | 13.39″ L x 4.06″ D x 4.29″ H |
Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
Mounting Bolt Pattern | 3.00″ x 4.875″ (4-Hole) |
Recommended Battery | 12 Amp/hour minimum |
Warranty | Limited 1 Year |
Winch Weight | 24.8 lbs. (complete kit) |

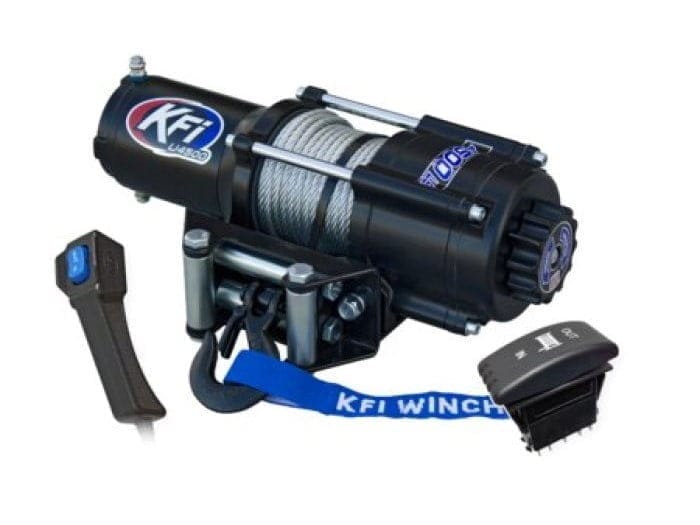

4,500 Standard Winch
Model | U4500 UTV Series |
Rated Line Pull | 4500 lbs. |
Motor | 12V DC, 1.7 hp Permanent Magnet |
Gear Ratio | 166:1 |
Gear/Transmission | All-metal Planetary Gear Drive |
Brake | Dynamic and Mechanical |
Clutch (free spooling) | All Metal Cam Activated Freespool |
Drum Size | 2″ (D) x 3.19″ (L) |
Cable | 15/64″ (D) x 38′ (L) |
Fairlead | Multi-directional Roller |
Control | Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch |
Winch Dimensions | 14.6″ L x 4.55″ D x 5″ H |
Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV) |
Mounting Bolt Pattern | 3.00″ x 4.875″ (4-Hole) |
Recommended Battery | 12 Amp/hour minimum |
Warranty | Limited 1 Year |
Winch Weight | 36.6 lbs. (complete kit) |

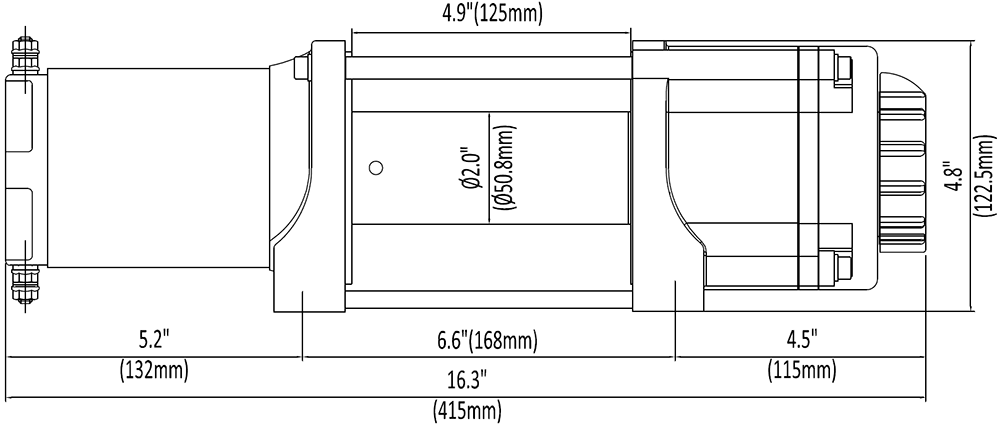

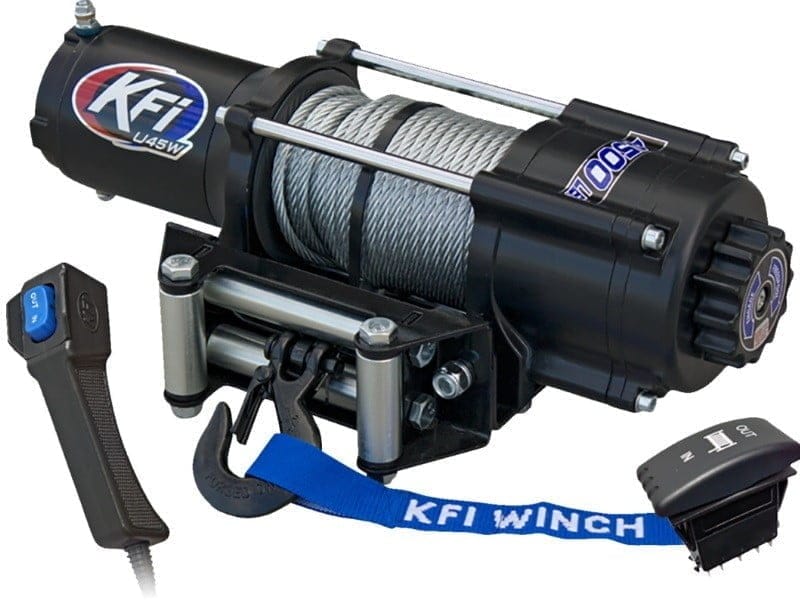

4,500 Wide Spool Winch
Model | U45w-R2 UTV Series (WIDE) |
Rated Line Pull | 4500 lbs. |
Motor | 12V DC, 1.7 hp Permanent Magnet |
Gear Ratio | 166:1 |
Gear/Transmission | All-metal Planetary Gear Drive |
Brake | Dynamic and Mechanical |
Clutch (free spooling) | All Metal Cam Activated Freespool |
Drum Size | 2″ (D) x 4.92″ (L) |
Cable | 15/64″ (D) x 52′ (L) |
Fairlead | Multi-directional Roller |
Control | Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch |
Winch Dimensions | 16.3″ L x 4.55″ D x 5″ H |
Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV) |
Mounting Bolt Pattern | 3.00″ x 6.60″ (4-Hole) |
Recommended Battery | 12 Amp/hour minimum |
Warranty | Limited 1 Year |
Winch Weight | 39 lbs. (complete kit) |
