Kicker Audio Loaded Enclosuers
Kicker Subwoofer Enclosures Are Lightweight, Waterproof And Hits Super Hard, These Kicker Audio TB Loaded Boxes Give You The Full Bass You Every Wanted

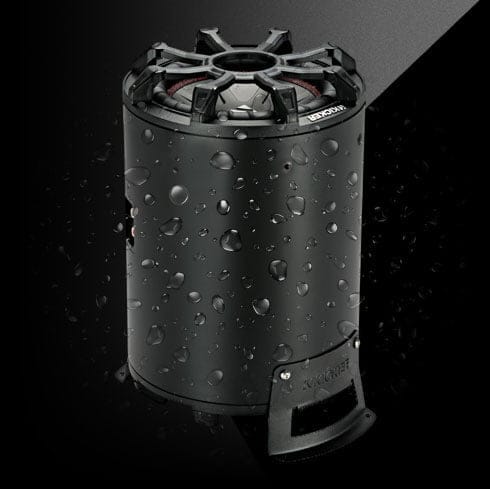

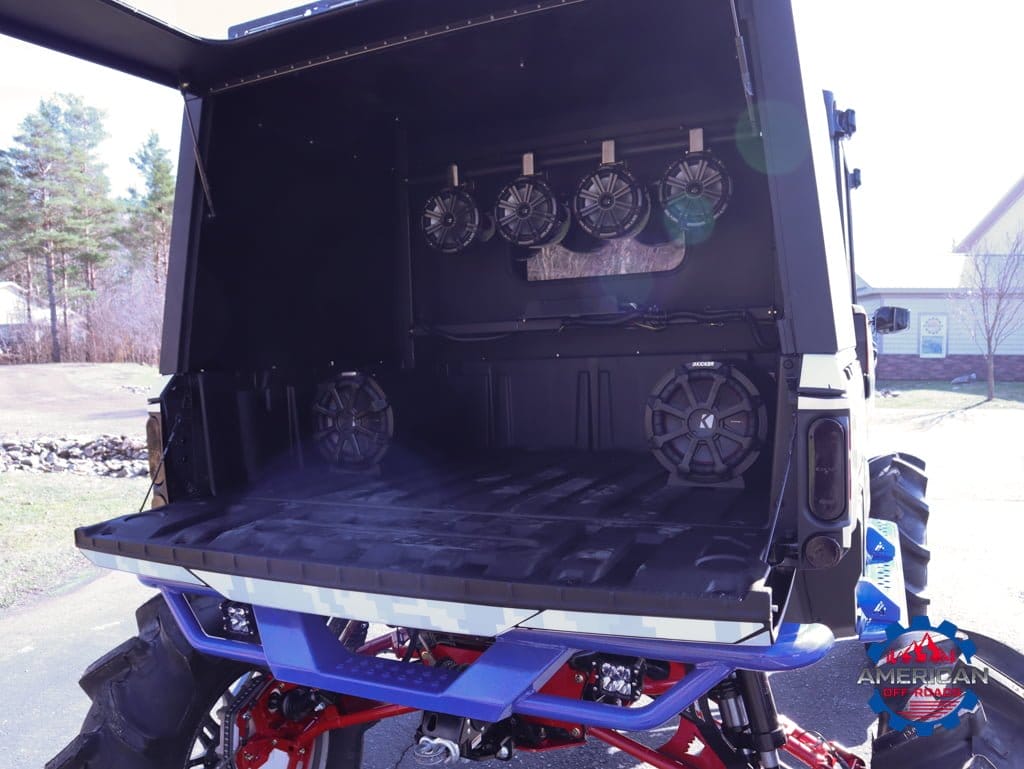

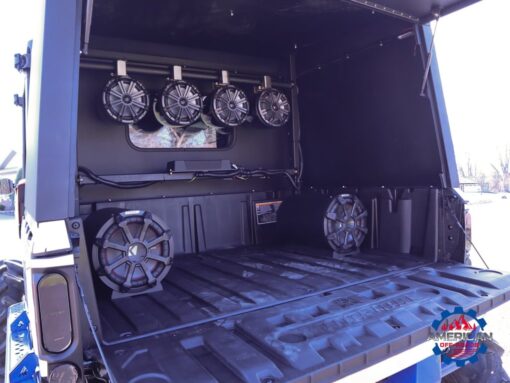

Great bass from a tiny space! The weatherproof TB Sub System delivers serious bump from any corner of your trunk, behind your truck’s seat, or even in your boat or side-by-side!

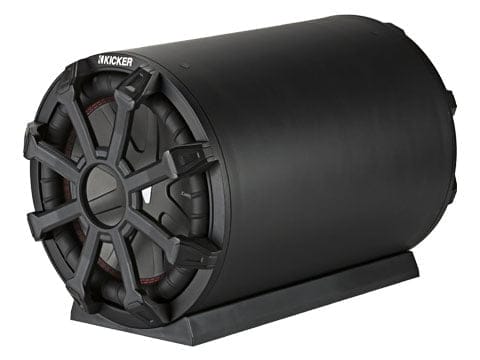

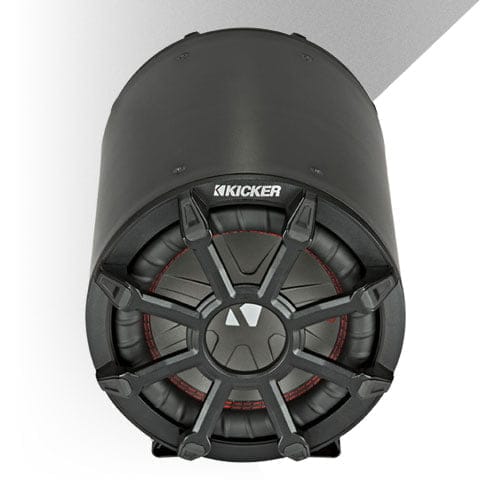

An innovative bracket system allows the TB to be mounted with ease, horizontally or vertically. Put it anywhere. In nearly any vehicle. In a boat, works best horizontally and inside furniture. Now you have the flexibility to install your sub, your way.
The CompR subs mounted in the TB features a powerful ceramic magnet, an advanced suspension and superior heat management system for big bass and long life on the road. Our signature double red stitching creates an outstanding bond between the Santoprene® surround and Polypropylene woofer cone for reliable performance under extreme conditions. KICKER’s SoloKon™ technology joins the cone to the vented back brace – both cooling the motor and eliminating distortion for clean, smooth bass. You get all this CompR innovation and technology is in every TB.
DESIGN FEATURES
- 2 Speakers per tube
- Thick ABS Tube Construction
- Flexible Horizontal or Vertical Mounting System

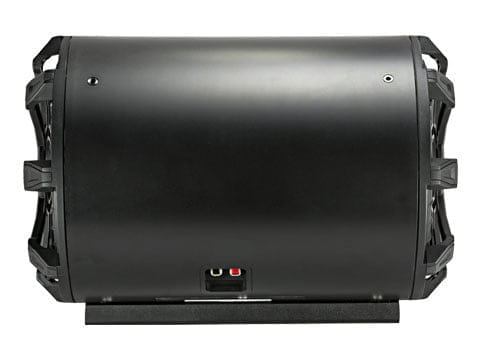

- Spring-Loaded Speaker Terminals
- CompR Woofer and Reflex Sub
- Ceramic Magnet
- Advanced Heat Management System
- Signature Double Red Stitching
- Grilles included
Whats In The Box
- 1 – enclosure assembly
- 2 – vertical mounting brackets
- 1 – horizontal mount base
- 1 – Horizontal mount hook(retainer)
- 1 – Horizontal mount plate(retaining clamp)
- 7 – stainless steel M5 x 12mm button head screws for horizontal mount plate to base and mounting brackets to enclosure
- 11 – nylon flat washers (to be used on all mounting fasteners)
- 4 – stainless steel pan head phillips M4 x 25mm (for mount base to vehicle)
- 1 – owner’s manual
- 2 – Kicker stickers
Sizes And Specs
- RMS Power Handling – 400 Watts
- Peak Power Handling – 800 Watts
- Wired Impedance – 4 Ohms
- Sensitivity – 85.7db @ 1W/1m
- Enclosure Type – Sealed Tube w/ Passive Radiator
- Height (Vert. Mount) – 17.0625″ (434mm)
- Height (Horiz. Mount) – 10.75″ (273mm)
- Width – 10.625″ (270mm)
- Depth – 16.5625″ (421mm)
- Grille(s) Included – Yes
- RMS Power Handling – 400 Watts
- Peak Power Handling – 800 Watts
- Wired Impedance – 2 Ohms
- Sensitivity – 85.7db @ 1W/1m
- Enclosure Type – Sealed Tube w/ Passive Radiator
- Height (Vert. Mount) – 17.0625″ (434mm)
- Height (Horiz. Mount) – 10.75″ (273mm)
- Width – 10.625″ (270mm)
- Depth – 16.5625″ (421mm)
- Grille(s) Included – Yes
- RMS Power Handling – 300 Watts
- Peak Power Handling – 600 Watts
- Wired Impedance – 4 Ohms
- Sensitivity – 84.4db @ 1W/1m
- Enclosure Type – Sealed Tube w/ Passive Radiator
- Height (Vert. Mount) – 13.4325″ (341mm)
- Height (Horiz. Mount) – 8.625″ (219mm)
- Width – 8.5″ (216mm)
- Depth – 12.875″ (328mm)
- Grille(s) Included – Yes
- RMS Power Handling – 300 Watts
- Peak Power Handling – 600 Watts
- Wired Impedance – 2 Ohms
- Sensitivity – 84.4db @ 1W/1m
- Enclosure Type – Sealed Tube w/ Passive Radiator
- Height (Vert. Mount) – 13.4325″ (341mm)
- Height (Horiz. Mount) – 8.625″ (219mm)
- Width – 8.5″ (216mm)
- Depth – 12.875″ (328mm)
- Grille(s) Included – Yes
